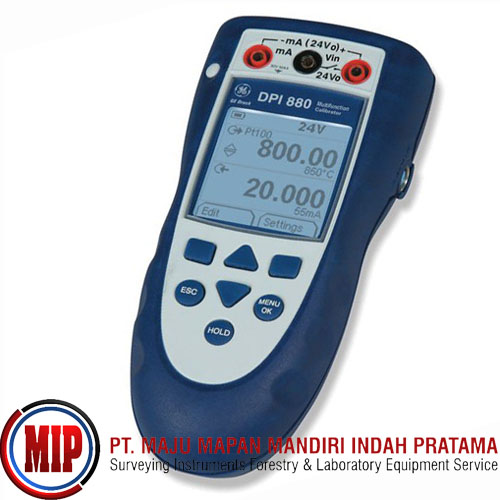

DRUCK DPI880 Multi-Function Calibrator

Compact and easy-to-use, the GE Druck DPI 880 multi-function calibrator tests, configures, and calibrates virtually all process parameters. The GE Druck DPI 880 multi-function calibrator is 35% smaller than competitive models and its Windows-like menu-driven display means fewer keys and simpler, easier-to-understand interface. The data logging capability means that users no longer need to carry additional recording tools.

The GE Druck DPI 880 multi-function calibrator is virtually a calibration lab in the palm of your hand. The user has the ability to obtain high precision data and address any issue in as much time as it takes to press a button, saving valuable operating time. For example, the GE Druck DPI 880 multi-function calibrator can accurately test switches, trips, and alarms and print the results in 5 minutes, while a traditional device would take up to 40 minutes and would require manual data entry. Thermocouple transmitter calibrations may take up to an hour using a conventional (older, more dated) tool that requires the use of look-up tables. The GE Druck DPI 880 multi-function calibrator is capable of providing the ready to print results in just 5 minutes.

The GE Druck DPI 880 multi-function calibrator measures and sources milliamps, millivolts, volts, ohms, frequency, thermocouples, RTDs, pulses, and pressure, captures switch values and provides 24 volt loop power. As such, the GE Druck DPI 880 multi-function calibrator is a powerful tool for testing, configuring, and calibrating virtually any process parameter. Dual readings of both input and output parameters simplify calibration and system diagnostics, reducing the amount of service time required by technicians.

The GE Druck DPI 880 multi-function calibrator shares common features with the other DPI 800 series models including a large, bright, backlit, full graphic display for easy reading in poor lighting conditions. Users benefit from the full graphic capability of the screen that creates multi-level readings and in depth reports. The rubberized exterior makes GE Druck DPI 880 multi-function calibrator an outstandingly robust device in rugged process field conditions that wear other meters out before their time.

The GE Druck DPI 880 multi-function calibrator has a built-in Hart® loop resistor which alleviates the need to add an inline resistor when calibrating Hart devices.

Features:
Sources and reads mA, mV, ohms, frequency and pulses
Simulates and reads 8 RTDs and 12 thermocouples
32 IDOS ‘Plug-N-Play' Pressure modules from 10 in H2O to 10,000 psi (25 mbar to 700 bar)
Simultaneous dual reading capability
Automatic switch test and pressure leak test
24 V loop power supply
Datalogging option
Compact, simple to use, easy to carry
Convenient one hand operation

What's In The Box:
(1) Calibration Certificate
(1) User's Manual
(1) Set of Electrical Test Leads
(3) AA Alkaline Batteries
