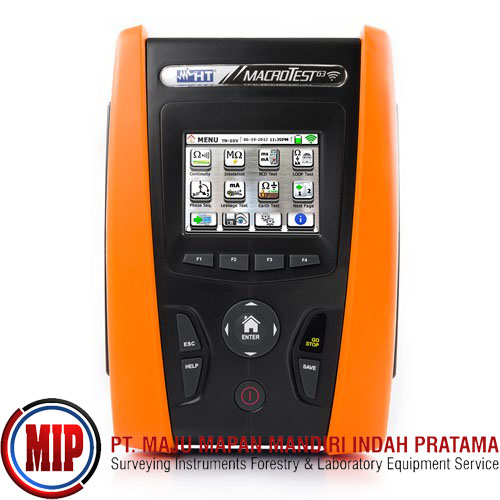

HT Instruments MACROTEST G3 Multifunction Tester

MACROTEST G3 is an innovative multifunction installation tester capable of carrying out safety tests on civil and industrial electric systems in compliance with IEC/EN61557-1. Its resistive TFT color touch-screen display, its icon menu, its help-on-line and its user-friendly development make the instrument extremely intuitive even for unskilled users. Its numberless features grant the user a wide range of applications in the world of measurements.



The multifunction installation tester MACROTEST G3 allows saving all measures into an internal memory so transferring the saved data to a PC by means of USB (provided as standard) or built in Wi-Fi interfaces with an iOS and Android smartphones or tablets . The software supplied among standard accessories allows printing testing reports.



The multifunction installation tester MACROTESTG3 also drives the optional accessory IMP57 to carry out high resolution (0.1mOhm) loop/line impedance measurements with prospective short-circuit current calculation. This allows accurate measurements even close to power stations enabling the user to correctly size the protection devices in any system.



Further possible tests consist in checking breakdown current, tripping current, I2t relative to breakers (MCB) with curves B, C, D, K and fuses type gG as well as aM and the percentage voltage drop on the main power lines. The test on earth leakage relay tester RCDs up to 10A (with optional accessory RCDX10) is also possible with the instrument. Through optional clamp model HT96U it is possible to measure the leakage current. The multifunction installation tester MACROTESTG3 has as Optional clamp T2100 permits to quickly check the resistance of earth probes without disconnection from earth system.



MACROTESTG3 GENERAL SPECIFICATIONS

DISPLAY AND MEMORY

Features Touch screen, color graphic LCD, 320x240mm

Memory 999 locations, 3 marker levels

Communication Optical-USB and WiFi (with C2013 optional accessory)

POWER SUPPLY

Batteries 6 x 1.2V(rechargeable) type AA or 6 x 1.5V type AA

Battery life > 500 test for each funtions

Auto Power OFF after 5 min of idleness (disabled)

MECHANICAL FEATURES

Dimensions (L x W x H): 225 x 165 x 75mm

Weight (included batteries) 1.2kg

WORKING ENVIRONMENTAL CONDITIONS

Reference temperature 23°C ∔ 5°C

Working temperature 0Ω ∔ 40ΩC

Allowed relative humidity < 80% HR

Storage temperature -10 ∔ 60°C

Storage humidity < 80% HR

GENERAL REFERENCE STANDARDS

Safety of measuring instruments IEC/EN61010-1, IEC/EN61010-031, IEC/EN61010-2-032

Product type standard IEC/EN61557-1

Technical documentation IEC/EN61187

Insulation Double Insulation

Pollution degree 2

Encapsulation IP50

Overvoltage category CAT III 240V ∼ (to ground), max 415V between inputs

Max height of use 2000m



What's In The Box

STANDARD

C2033X : Cable 3 wires with Shuko plug

KITGSC5 : Set 4 cables + 4 alligator clips + 2 test leads

KITTERRNE : Set 4 cables + 4 metal probes

PR400 : Remote lead per activation test

PT400 : Touch pen

TOPVIEW2006 : Windows software + optical/USB cable C2006

BORSA2051 : Soft carrying bag

YABAT0003000 : Rechargeable battery 1,2V NiMH, type AA, 6 pcs

YABAT0004000 : External battery charger

ISO9000 calibration certificate

Quick reference guide

User manual on CD-ROM



OPTIONAL

IMP57 : Accessory for high resolution Loop/Line Impedance

HT96U : Rigid clamp 1-100-1000A AC, diameter 54mm

HT52/05 : Air temperature/humidity probe

HT53/05 : Illuminance (Lux) probe

T2100 : Clamp for earth probe measurement

C2013 : Accessory for WiFi connection

1066-IECN : Connector for banana cables, black colour

1066-IECR : Connector for banana cables, red colour

SP-0400 : Set of straps for use of meter on neck
