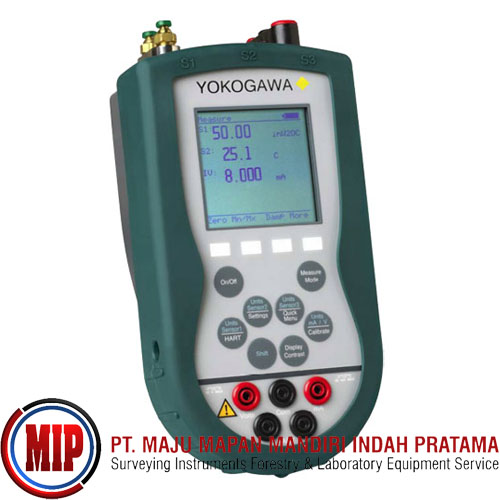

YOKOGAWA YPC4000 (Base Unit) Portable Multifunction Calibrator

YPC4000 is a Calibrator that reduces the time spent on field calibrations and the number of test instruments that have to be carried into the field. The YPC4000 Series delivers the versatility of a modular calibrator in one handheld unit. Users can view up to four measurements simultaneously on the high resolution LCD. Available sensor modules include a variety of differential, gauge, vacuum and absolute pressure as well as voltage, current and temperature. A voltage and current meter is integral to the base unit.



Features

OPEN BOX – Calibration certificate dated April 2017. See Documents on this page for copy of the certificate. Contact our sales department for re-calibration cost if desired.

USER INTERFACE – 2.6” x 2.6” display, four soft keys (definitions change with mode requirements) and eight hard keys provide user interface. Display is configurable for 1 to 4 simultaneous measurements.

NOTE – This version is non HART. For HART version order YPC4010

MODULES – select from a variety of positive lock measurement modules for excellent versatility.

FIELD RECERTIFICATION – Sensor modules and integral V / I can be recalibrated for zero, span, & linearity through the base unit.

MEASUREMENT UNITS – customary English and Metric System units are selectable

USER CONVENIENCE – Auto shut off, Damping, Min/Max value capture, display Hold, sensor Zero, direct Contrast adjustment & tare.

SECURITY LOCKOUT – YPC4000 settings can be locked out entirely or by specific feature.

DIAGNOSTICS – YPC4000 self-tests upon power up and upon installation of sensor modules. Advisories are posted on the display.

ALL-IN-ONE TOOL – takes the place of multiple handheld instruments, simplifies work load and improves productivity



Specifications

BASE UNIT 9.00"L x 4.70"W x 3.58"D ABS plastic case with shock absorbing boot, 28 ozs, three bays for measurement modules

DISPLAY 128 x 128 pixel graphic display, 2.6” x 2.6” viewable area, 5-digit resolution

POWER 6 AA alkaline or NiMH batteries; optional 100 – 240 Vac power adapter

TEMPERATURE RANGE Storage:-40°F to 140°F (-40°C to 60°C) Operating: 23°F to 122°F (-5°C to 50°C)

CONNECTIONS Pressure: 1/8” FNPT, 316ss

Electrical: Std. banana jacks (¾” center) for ±50 mA/Volts, HART® & Loop leads

Data transfer: DB-9 for RS-232C

NIST TRACEABLE ACCURACY Pressure: ± 0.025% to ± 0.10% of F.S including all effects of linearity, repeatability, hysteresis and temperature over the range 23° F to 122° F.

Current / Voltage: ± 0.025% of F.S. ± 0.001% of Span per ° F (ref. temp. 70° F).

PRESSURE MODULE LIMITS / MEDIAS GI / AI modules: 2X range / 316ss compatible DN modules: 2X range when pressurized on high side only, 150 PSI when applied simultaneously to high and low sides / dry gases only

MODULES 2.3”L x 1.3”W x 2.6”D, 8.3 ozs or less. Positive lock with spring latch. Depress latch to release. Electrical connections are PC board contacts to spring loaded receivers on base unit. Cap plugs protect any empty bay(s).



What's In The Box

Open Box YPC4000 Calibrator with test leads

Soft case

Hard Case ZA36750

CD

Hard copy instruction manual

Calibration Certificate dated April 2017, see copy in Documents on this page

6x AA alkaline batteries
