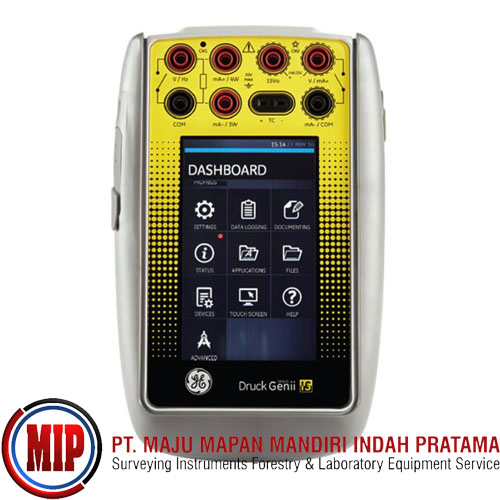

DRUCK DPI620G-IS-FF Genii Multifunction Calibrator With HART And Foundation Fieldbus

The GE Druck DPI 620 Genii-IS multifunction calibrator provides simultaneous measurement and source capabilities for the setup, testing and calibration of most types of process instruments including transmitters, transducers, gauges/indicators, switches, proximity detectors, counters, RTDs, thermocouples and valve positioners.

Its modular design and functionality means it can be expanded over time and tailored to applications as your needs change or adapted in the field to suit multiple applications. Three pressure generation base station options are available; as well as pressure module carrier and a wide range of interchangeable pressure modules from 25mbar (10inH2O) to 1,000bar (15,000psi) with 0.005%FS accuracy. No tools or seals are required to transition.

Optional HART communication protocol gives the ability to measure and source analog variables without secondary calibration equipment and provides:

Internal mA loop power & communicator power hubs
Software & complete device description (DD) library with free updates
Internal menu selected 250 ohm loop resistor

Features:
Generate up to 1500psi (100bar) pneumatic pressures
15,000psi (1000bar) hydraulic
Measure & source electrical, frequency, & temperature
mA, mV, V, ohms, Hz, RTD’s & thermocouples
Single touch configuration of common devices
Data log up to six channels simultaneously (8GB)
Calculates errors between inputs & outputs
HART, Fieldbus, & Profibus communicator options
Approved for zone 1 & 2 classified hazardous areas
CE Marked & IP54 ingress protection

What's In The Box:
(1) Test leads
(1) Rechargeable lithium ion battery
(1) Universal mains adapter & charger
(1) Calibration certificate
(1) Quick reference guide
