YOKOGAWA CA700 Portable Pressure Calibrator

Features:
High Accuracy & Long Stability - the highest accuracy in its class
Rangeability - the highest resolution & widest range in its class
User Support - Strong support for field calibration & maintenance work
Field Use - IP54 robust case enables use in harsh environments
Accessories - 3 high performance hand pump models for different pressure ranges (sold separately)

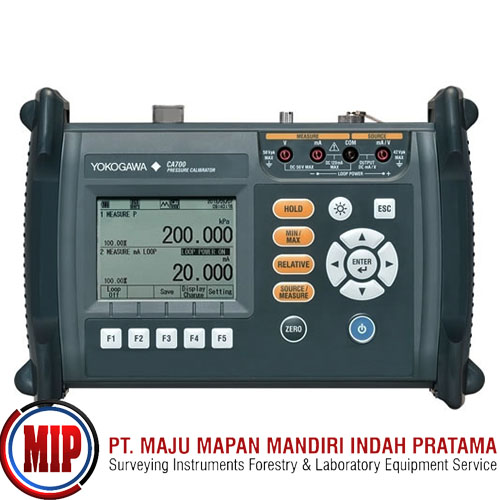

The Yokogawa CA700 is a highly accurate and highly functional portable pressure calibrator specifically designed for the calibration of differential pressure and pressure transmitters, which are widely used in plant processes. The CA700 has achieved the highest accuracy and widest range in the portable class, enabling field calibration with greater accuracy than ever before.

The CA700 is equipped with a silicon resonant sensor that uses proprietary Yokogawa DPHARP technology. The CA700 can measure pressures with an accuracy that is within ±0.01% of the reading, making it one of the most accurate portable pressure calibrators on the market. This highly accurate instrument also features a variety of functions that includes a wide selection of measuring ranges, data storage and memory capacity to store calibration procedures. The CA700 provides an accurate and efficient calibration and verification tool for pressure/differential pressure transmitters and other types of field devices for commissioning or regular inspection.

Includes: A set of 1.7 m long black and red lead wires with alligator clips for generation and measurement, six alkaline AA batteries, R1 1/4” – 1/8” NPT female thread × 1, ferrite core × 2, R 1/4” – 1/4” NPT female thread × 1, accessory case, instruction manual (CD), startup guide, shoulder strap.
