DRUCK UPS4E Safe Area Loop Calibrator
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

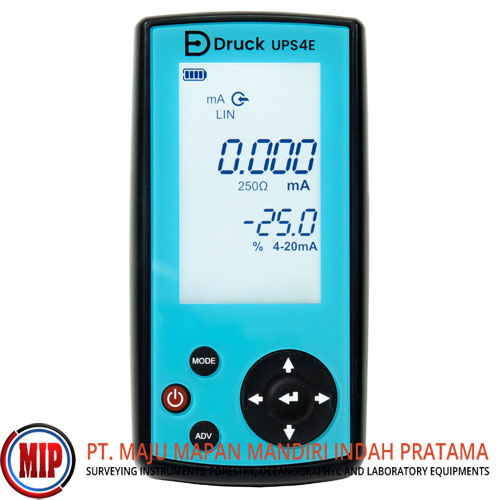

The Druck UPS4E Series is a rugged, handheld loop calibrator designed for maintenance, troubleshooting, and 4-20 mA loop calibration. It features 0.01% of reading accuracy, 0-24 mA sourcing/measuring, 24 VDC loop power, 100,000 datalog points, and built-in HART support. The device features a backlit graphic display and USB-C connectivity for data management.
Part Number: UPS4E
Model: UPS4E Series
Version: Safe Area
High Accuracy: Offers high-accuracy measurement and simulation of 0–24 mA, suitable for mA loops and devices, with 0.01% reading accuracy + 1 count.
Loop Power: Features internal 24V DC loop power in both measurement and source modes.
Data Logging: Capable of recording over 100,000 data log points.
Versatile Testing Modes: Includes Step, Span check, Valve check, and Ramp functions (1–599 seconds).
Display: Features a high-contrast backlit graphic display, showing both mA and percentage values.
HART Support: Built-in 250 Ω resistor.
Loop Diagnostic Functions: 30 VDC measurement and continuity check.
Portability and Build: Compact and lightweight, designed for one-handed use, with IP54 ingress protection.
Power Management: Automatic shutdown to conserve battery life, powered by 4x AA batteries.
Applications:
Loop Testing and Calibration: Powering and testing 4–20 mA process control loops and devices.
Transmitter Maintenance: Verification and calibration of pressure, temperature, and flow transmitters.
Valve Testing: Valve check functions for verifying actuator operation and positioning.
Plant Shutdowns: Used to speed up instrument calibration and loop checks during shutdowns.
Troubleshooting: Diagnostic testing of loop components due to its ability to simulate and measure mA simultaneously.
Smart Instrumentation: Compatible with smart devices using the integrated 250 Ω HART resistor.
Include:
(1) UPS4E - Safe Area Safe Area Loop Calibrator
(4) AA Alkaline Batteries
(1) 209-359 - Test Leads
(1) IO-USB-C-CABLE - 2m USB Cable (Type A to C)
(1) 183M0493-1 - Quick Start Guide
(1) Calibration Certificate
