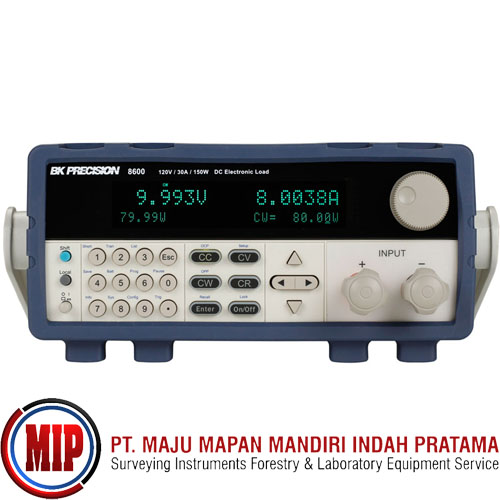

BK Precision 8600 150W Programmable DC Electronic Load
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The BK Precision 8600-220V programmable DC electronic load provides the performance of modular system DC electronic loads in a compact benchtop form factor. With fast transient operation speeds up to 25 kHz and high 16-bit measurement resolution and accuracy, the 8600 DC load can be used for testing and evaluating a variety of DC sources such as DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays.
The 8600 can operate in constant voltage (CV), constant current (CC), constant resistance (CR), and constant power (CW) mode and be configured to provide a dynamically changing load to the DC source with fast loading switching times. Versatile internal, external, and remote triggering options allow the dynamic load behavior to be synchronized with other events.
Increase productivity by saving your test parameters into any one of the 100 memory areas for quick system recall. All load parameters such as voltage, current, slew rate, and width can be set via the front panel or programmed remotely. The 8600 Series provides standard USB (USBTMC-compliant), GPIB, or RS-232 serial interfaces for remote communication. The instrument provides flexible triggering capabilities, analog current control and monitoring, and standard USB (USBTMC-compliant), GPIB, or RS-232 serial interfaces for remote communication.
Features:
Wide voltage and current range, 0 to 120V, 0 to 30 A
CV/CC/CR/CW operating modes
Transient mode up to 25 kHz in CC mode
16-bit resolution voltage and current measurement of 1 mV and 0.1 mA
List mode function
Store and recall up to 100 setups
Adjustable slew rate in CC mode
Flexible triggering options via front panel, external input, timer, or bus
Short circuit test
Built-in battery test function with voltage level, capacity level, and timer stop conditions
CR-LED mode to simulate the loading behavior of typical LEDs
Remote voltage sensing to compensate for the effect of voltage drop in wires
Analog current control and monitoring
Standard USB (USBTMC-compliant), RS-232, and GPIB interfaces with SCPI protocol support
Overvoltage (OVP)/Overcurrent (OCP)/Overpower (OPP)/Overtemperature (OTP) and local/remote reverse voltage (LRV/RRV) protection
What's In The Box:
(1) User Manual
(1) Power Cord
(1) Test Report
(1) Certificate of Calibration
