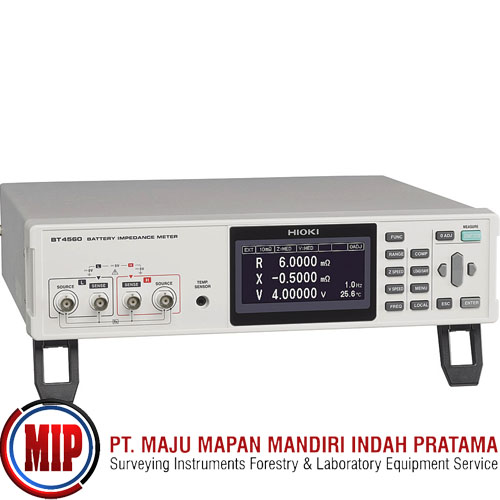

HIOKI BT4560 Benchtop Battery Impedance Analyzer

Rp. 195,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Hioki BT4560 Benchtop Battery Impedance Analyzer support simultaneous high-speed measurement in the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries. The BT4560 measures the impedance of Li-ion batteries using the low-frequency AC-IR measurement method without charging and discharging the battery, substantially reducing the time needed to inspect the internal resistance of battery cells.

Features:
Input voltage: Up to 5 V
Temperature Range: -10.0 C to 60.0 C
Temperature Measurement time: 2.3 s
Voltage Measurement range: 5 V (single range)
Voltage Measurement time: 0.1 s (Fast) to 1.0 s (Slow)
Low-frequency AC-IR measurement enables faster measurement (The BT4560 eliminates the need for charging or discharging by measuring internal impedance at a low frequency of 1 Hz or below)
Extremely reliable measurements for low-impedance batteries(The BT4560 uses a testing current of 1.5 A at the 3 mOhms range, which improves the S/N ratio)
Circuit configuration highly tolerant of contact and wire resistance to provide stable measurements
Simultaneous measurement of impedance and voltage

What's in the Box:
(1) Power cord
(1) User manual
(1) Zero-adjustment board
(1) USB cable (A-B type)
(1) CD-R (communication instruction manual, PC application software, USB driver)
