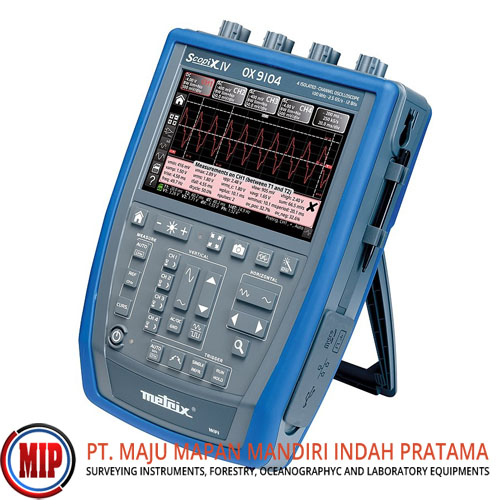

CHAUVIN ARNOUX Scopix IV OX9102 Digital Storage Oscilloscope

Chauvin Arnoux Scopix IV [OX 9102] 2-Ch, 100 MHz Metrix Handheld Digital Storage Oscilloscope. SCOPIX IV oscilloscopes are ideal for work in the field or in the lab. Pratical for all measurements in total safety, the OX 9102 is equipped with 2 totally-isolated channels with 100 MHz bandwith and a memory depth of 100 kpoints per channel, considerably increasing the available duration for recording. The OX 9102 oscilloscope is multifunction and has available all the analytical modes : Oscilloscope, multimeter, analyser, recorder and viewing of files recorded. The OX 9102 oscilloscope offers a genuine high performance thanks to its 12-bit converter with a vertical resolution of 0,0025%. In addition to its advanced trigger functions (pulse width, counting, delay), OX 9102 proposes 20 automatic measurements per channel linked to cursors for comprehensive analysis. OX 9102 benefits from standard and advanced "MATH" functions allowing users to define a mathematical function for each of the traces, along with vertical scaling and definition of the actual physical unit. Thanks to the real-time FFT function provided simultaneously with the waveform plus qualitative analysis of the harmonics, the distortion of a signals, the pulse response, it ensures effective, accurate diagnostics when searching for a source of noise in the logic circuits

The multi-channel, 8,000-count, 200 kHz TRMS digital multimeter measures the amplitudes, resistance, continuity, capacitance, frequency and temperatures, as well as performing component tests without changing the connections thanks to PROBIX. The multimeter mode is linked to the logger mode, allowing time/date-stamped recordings to be made automatically (N files of 100,000 measurements each with a 0.2 s interval between 2 acquisitions.). Power measurements are possible in this mode: single and three-phase power active reactive and apparent power plus the power factor. The multi-channel harmonic analyser mode is capable of displaying the first 63 orders for signals whose fundamental frequency is between 40 and 450 Hz. A .png screenshot is available in each of the modes and the reminder of all your recordings provides an unprecedented level of comfort for your diagnostics. All the means of communication are available to optimize your analyses: wired Ethernet and WIFI, USB and μSD. PROBIX plug-and-play accessories offer a quick implementation of the instrument with no risk of errors. The coefficients, scales and units of the sensors and the channel configuration are managed automatically and the probes and adapters are recognized as soon as they are connected.

Part Number: OX 9102
Number of channels : 2 isolated channels
Bandwidth : 60 MHz
Functions as an oscilloscope, multimeter, harmonics analyser and data logger
Available in four models with differing bandwidths and number of isolated channels
Four modes: Oscilloscope, Multimeter, Analyser and Recorder
Trigger functions: pulse width, counting and delay
Delay mode: observe any event with the maximum resolution
Counting mode: count events before the trigger
Trigger functions allow the user to record all faults without recording data unnecessarily
Automatic measurements: view all 20 parameters of the signal for each channel
Use H and V cursors to view signals in greater detail
Perform direct comparisons between two traces and view the parameters with regards to their deviations by selecting ‘Reference Deviation Memory’
Math Functions: -/+/*/÷  as well as sine, cosine, exponential, logarithm and square root
Define a mathematic function for each of the traces
View all calculated traces
FFT function: measure the different harmonics and/or distortion of signals, analyse the pulse response and search for noise in the logic circuits
FFT has two modes, linear or logarithmic (dB)
Use cursors to conduct precise measurements of frequency lines
Autoset function scales the spectrum
80dB dynamic range and 12-bit/ 2.5 GS/s conversion
Perform harmonic analysis on all isolated channels up to the 63rd order as required by the EN 50160 standard
Preselect fundamental frequency (choose from 50Hz, 60Hz and 400Hz)
View the phase of the harmonic in relation to the fundamental frequency
View RMS level, harmonic distortion and harmonic frequency
View  the harmonic analysis of all the isolated functions simultaneously
8000-count, true-RMS digital multimeter
AC/DC voltage
AC/DC current
Resistance
Continuity
Capacitance
Component tests
Single-phase power
Three-phase power on a balanced network without neutral
Three-phase power on a balanced network with neutral
3-wire three-phase power (2-wattmeters method)
Use a Pt100/ Pt1000 sensor or K thermocouple to measure temperature
‘Plug and Play’ accessories are automatically detected, calibrated and powered by the oscilloscope
Recorder mode allows the oscilloscope to record data gathered when in Multimeter mode
Record data over a duration of 2 seconds to 1 month
Set data acquisition intervals as short as 40µS
Display signal traces as references at the push of a button
View comparisons and measurement deviations
Save information in various formats for easy exportation
Capture screenshots in PNG formats
The front panel can be used to send documents to print and transfer and delete files in the file manager
Recall curves and screenshots from the instrument’s memory
Communicate with a PC, tablet or smartphone via an Ethernet or USB connection
Ethernet LAN network with an integrated DHCP server may be used to activate a Wi-Fi radio link
Save information to a µSD card
Record, recall and load configurations via USB connection
When connected to a PC via the ScopeNet application, USB or Ethernet connection the instrument can be operated remotely and programmed using SCPI commands
7-inch WVGA wide colour TFT touchscreen with a resolution of 800 x 480dpi, and manual or automatic brightness
View colour-coded channels and parameters via the display
Pictograms for easy access to particular functions
IP54
Adjustable transport strap
Stand with Kensington locking system
Ergonomic, versatile, comprehensive, easy-to-use instrument ideal for a variety of maintenance applications

Include:
(1) OX 9102 - Digital Oscilloscope
(1) Carrying Bag
(1) PA40W-2 Mains Power Pack/Charger
(1) 2P EURO Mains Power Cable
(1) Li-Ion battery pack
(1) Stylus
(1) Ethernet Cable
(1) USB Cable
(2) Safety Leads (red, black)
(2) Ø 4 mm Test Probes (red, black)
(1) Voltage Probes (2 or 4 depending on model)
(1) MicroSD card (8 GB)
(1) USB/ μSD adapter
(1) Hand strap
(1) PROBIX BANANA
(1) USB Installation Procedure for use of ScopeNet Data Export Software on CD-ROM
(1) PDF user’s manual (>5 languages)
(1) Start-up Guide on Paper
(1) Safety Datasheet in 20 Languages
