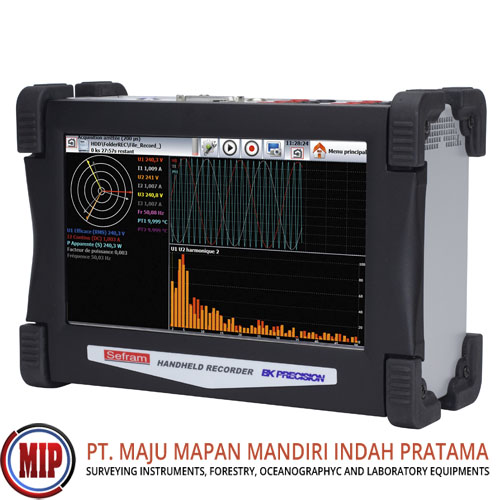

BK Precision DAS60 6-Channel High Speed Multi-Function Data Recorder

The DAS 30/50/60 high-speed multi-function recorders feature versatile channel configurability, high-speed sampling (1 MSa/s), a wide input range (±5 mv to ±500 V), large internal solid-state memory (up to 64 GB), and 9.5 hours of battery life. Combined with the CAT III isolation rating, these instruments are well suited for applications ranging from small sensor signal logging to electrical power analysis.



The best-in-class 2 μs sampling interval in file mode lets you capture transient events with confidence. Additionally, the large built-in memory allows for data recording over longer periods of time.



Each channel can record a different signal such as voltage, temperature, current or frequency simultaneously, using a common time base. The next-generation touchscreen features unlimited data scrolling, zoom in/out function as well as drag and drop delta cursors for precision measurements. measurements.



Feature DAS30 DAS50 DAS60

Isolated Universal Channels 2 4 6

File Mode Sampling Interval 5 µs (200 kSa/s) 5 µs (200 kSa/s) 2 µs (500 kSa/s)

Memory 32 GB 32 GB 64 GB

110 mm Thermal Printer Factory option Factory option Factory option

2 Pt100/Pt1000 Inputs Factory option Factory option Included

Power Analysis Single-Phase Single-Phase & Delta (Aron) Single-Phase, & Delta (Aron), Star

Power Analysis Frequency 50/60 Hz 50/60 Hz 50/60 and 400 Hz

PWM Analysis - - Included

Alarms 2 2 4

Operation Highlights



In The Box

AC mains adapter 100 / 240 V

Rugged carrying case

CAT III banana test leads(2) + alligator clips(2)

Bare wire to banana adapters(2)

25 pin male connector(1) and backshell

Soft wip

Stylus

Screwdriver

Calibration certificate & test report

Manuals/Guides
