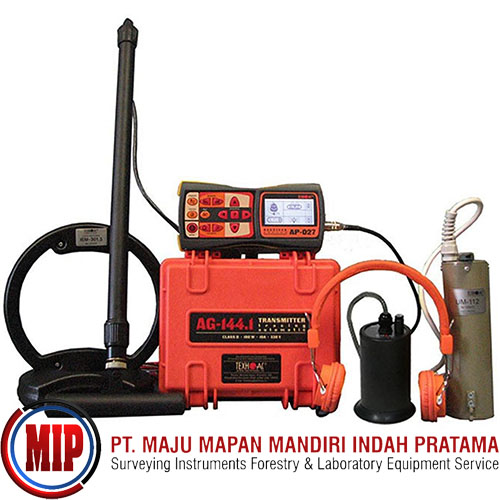

TECHNO-AC Success TPT-522 N Water Leak and Pipe Locator For Metal And Non-Metal
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The most advanced locating kit combining the functions of three devices: cable locator, water leak detector, non-metal pipe locator. Features AP-027 receiver, powerful transmitter and special impact device for the detection of non-metal pipelines.
Features:
AP-027 digital location receiver
60W AG-144 transmitter
acoustic leak detection function
UM-112 impact device for non-metal pipeline location
Brief description:
Two modes of operation: leak detection and route location
Receiver frequencies: 50 to 60Hz/100 to 120Hz/512Hz 1024Hz/8192Hz/33kHz
Transmitter frequencies: Hz - 512/ 1024/8928
Storage of 31 signal level with a graph displayed
Visual indication of the signal on the display: scale, graphic and spectrum
Graphic visualization (moving chart) of sequence of measurements, max and min signal levels
Sound indication
Choice of bandwidth
Two-segment indication of frequency spectrum (and “filtered”) signal
Light weight
Comfortable to wear for long terms
LCD display
Application:
Non-metal pipeline location underground
Water leak detection from metal or non-metal pipelines underground up to 6 m depth
Water leak detection inside the house
Detection of cables underground up to 6m depth
Detection of any metal pipelines underground up to 6 m depth
Survey the ground before the ground works (BB mode)
Distance of tracing from the place of transmitter connection is up to 3 km
Min and max method of tracing
Indirect measurement of the depth
What's In The Box:
(1) Receiver AP-027
(1) Acoustic sensor AD-227
(1) Carrying rod for AD-227
(1) Extension carrying rod for AD-227
(1) Contact rods for AD-227
(1) Magnet for AD-227
(1) Electromagnetic sensor EMD-247
(1) Holder for AP-027
(1) Transmitter АG-144.1
(1) Headphones
(1) Screwdriver
(1) Inductive antenna IEM-301.3
(1) Power connection cable AG120.02.080
(1) External power supply cable AG120.02.070
(1) Power adapter ESP 120-13,5
(1) Cable of power adapter YP-22/YC-12
(1) Power supply cable AG120.02.060
(1) Grounding rod
(1) Contact magnetic
(1) Impact device UM-112
(1) UM-112 carrying bag
(1) Set carrying bag
(1) EMD carrying bag
(1) Manual and passport
