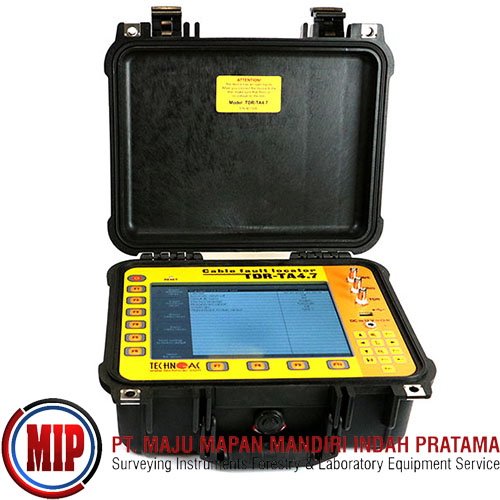

TECHNO-AC TDR-TA4.7 Cable Fault Locator

This UM is a document certifying guaranteed by the manufacturer the basic parameters and technical characteristics of the сable fault locator TDR-TA4.7 (hereinafter the TDR-TA4.7). UM is intended for acquaintance with the TDR-TA4.7 device and the principle of operation and sets the operating rules, compliance with which maintains the device in constant readiness for action.

Features:
Cable length measurement and cable integrity tests;
Measurement of the distance to the heterogeneity of the cable impedance or low-resistance fault,
      using TDR method;
Measurement of the distance to the high-resistance fault, using the Arc Reflection Method (ARM) in
      complex with the high-voltage pulse generator (HVPG);
measurement of the distance to the high-resistance fault, using the Impulse Current Method (ICM) or Decay
      Method in complex with the high-voltage pulse generator (HVPG);
measurement of the velocity factor of the line at a known length.

What's In The Box:
(1) Cable Fault Locator TDR-TA4.7 (tech. spec. 4221-009-23133821-15)
(1) AC Adapter 12 V
(1) Connecting cable 75 Ohm, 3 m, BNC.M - Alligator clipclipclipclip with a working width of 25.4 mm
(2) Connecting cable 75 Ohm, 1 m, BNC.M-BNC.M
(1) User Manual (tech. spec. 4221-009-23133821-15)
(1) CD-ROM with software
(1) Accessories bag - 1 item
