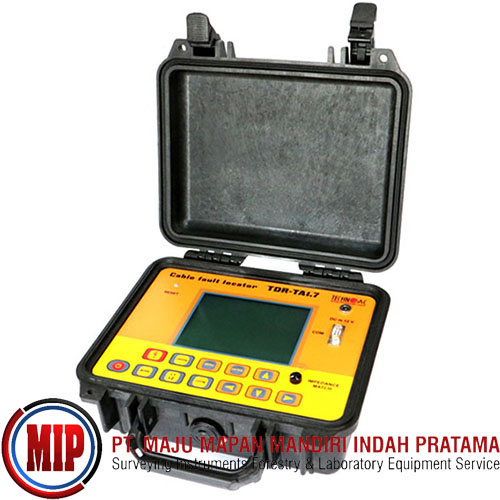

TECHNO-AC TDR-TA1.7 Cable Fault Locator

TDR-TA1.7 – a modern digital reflectometer designed specifically to find and diagnose faults in the power cable lines: open, short, sleeve, cable splice, parallel drainage, wet cable, etc.

TDR-TA1.7 reflectometer can be used to search for damage as the pulse method (effective for low-resistance defects), and as part of an electrical laboratory, pulsed-arc method (Arc-Reflection), allows to determine the high-resistance faults to hundreds of megohms.

Features:
Ability to apply two basic modern methods of diagnosis and fault location of cable lines: pulse method
and pulse-arc method;
Real time measuring;
Asynchronous interference suppression;
5.7 ” display with a resolution of 320×240 pixels;
Non-volatile memory for 100 traces with the digitization of all measurement parameters;
Pointwise subtraction mode to show only differences;
Maximum range – 50 km;
Compare mode with a trace from the device memory;
Preview mode waveforms with text notes from memory;
Built-in table velocity factor of 200 values​​, with the possibility of replenishment;
PC data exchange;
Splash proof hermetical body with high mechanical strength (protection class IP67).
Sphere of application
Pulse TDR TDR-107 is used to control when installing or operating the following types of cable lines:
System Cables Communications;
Signal and control cables;
Power cable;
Aerial cable lines;
Computer Networks;
Television and radio cable line;

What's In The Box:
(1) Cable fault locator TDR-TA1.7
(1) Power supply (charger) GSU15E-3
(2) Connection cable to cable line (HB-A100)
(2) Connection cable to HVPG (HB-B100)
(1) Connection cable to PC (DB9F/DB9F)
(1) User Manual
(1) Accessories bag
(1) Software CD (data transfer between TDR-TA1.7 and PC)
