SCHONSTEDT XTpc 82 Pipe and Cable Locator

Features:
Operates on 33kHz or 82 kHz Frequency mode
Passive detection of 50Hz or 60Hz, sonde or cathodic frequency (optional)
One button depth measurement
Digital readout display of signal strength (peak)
LCD displays left, right and "on-target" indications (null)
Transmitter 8-Hours operational battery life (intermittent usage)
Audio & Visual Output
Battery & Sensitivity Indicators
Operates on a passive mode, three different modes (conductive, inductive and clamp), and a sonde mode.
Auto Transmitter Power off
Ergonomic & lightweight
Smallest for easy storage

Schonstedt's innovative designers have created the most portable locator available today. The XTpc delivers the only complete locator system which you can carry on your tool belt. You can fit the industry's smallest transmitter in your hand or pocket.  The XTpc features simple one hand operation with all controls in easy reach of your thumb. The controls and the LCD display area are large and easy to understand. Clear direction arrows facilitate easy locating and foolproof centering.  The XTpc operates in passive mode, three different active modes (conductive, inductive and clamp), and a sonde mode.  This extremely versatile locator also features single button depth calculation. Simply place the receiver directly over the target and press the depth button.  The XTPC is made in two frequencies. In general, 82kHz is useful in tracing gas and water lines while 33kHz is a better choice for tracing electrical lines. You select a single frequency before purchase.

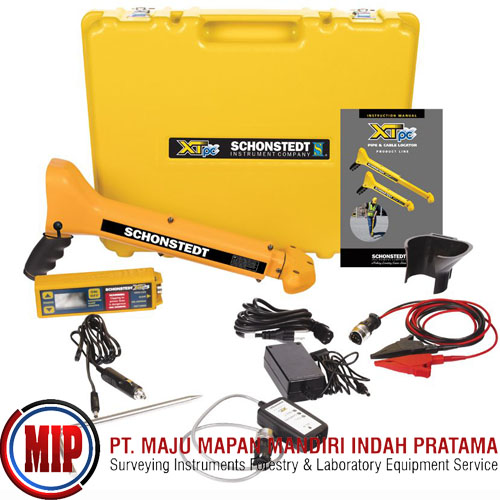

Includes:
Receiver
Transmitter
1 9V alkaline battery for the receiver
1 rechargeable NiMH pack for the transmitter
Main charging system for the transmitter
Auto adapter for the transmitter
Holster (PC10012)
Conductive clip assembly
Ground stake (208263)
Soft carrying case (PC40000)

Specifications: Receiver: Operating Frequency: 82kHz or 33kHz. Battery: 9 V Alkaline single battery. Battery Life: 18 hours intermittent use. Audio Output: 10 - 3000 Hz determined by signal strength 0 - 70 db SPL (Sound Pressure Level), volume controlled. Weight (incl. batteries): Under 2.8 lbs. Operating Temp: -4°F to 140°F (-20°C to 70°C).  Overal Dimensions: Closed: 17.5 in x 3 in x 8.5 in (44 cm x 7.6 cm x 21.5 cm). Extended:  27.7 in x 3 in x 8.5 in (70 cm x 7.6 cm x 21.5 cm). Max. Depth Capability: Approximately 19' (5.8 m). Transmitter: Operating Frequency: 82kHz or 33kHz. Output Power: Maximum 1-watt allowed under FCC at 82kHz; 1.8-watt at 33kHz. Battery Type: Rechargeable NiMH pack (7.2 V). Battery Life: 8 hours intermittent operation. Chargin: Smart charger powered by AC supply or vehicle supply. Outputs/Inputs: Circular "smart" connector to: 1) Inductive antenna; 2) Inductive clamp; 3) Conductive clips; 4) Battery charger. Weight (incl. batteries): Under 1.5 lbs.  Operating Temp: -4°F to 140°F (-20°C to 70°C).
