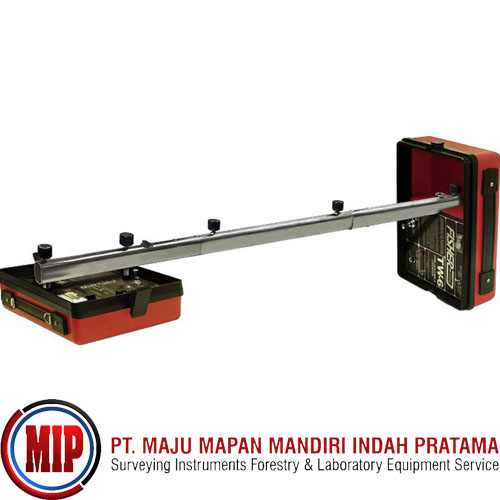

FISHER TW6 Pipe and Cable Locator

Rp. 45,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Features:
Finds underground pipes, cables, manhole covers, vaults, valve boxes and other metallic objects
Affordable, tough, and simple to use.
The industry standard
Unlike other units that use a separate transmitter and receiver, the TW-6, when mounted on the handle, can conduct “blind” searches of an area to locate an underground pipe or cable where the starting point is unknown
Noise cancelling circuitry eliminates power line interference
Two year warranty

The Model TW-6 "Two-Box" metal detector finds underground pipes, cables, manhole covers, vaults, valve boxes and other metallic objects. Like earlier models, the TW-6 is used primarily by water departments, telephone companies, power companies, gas companies and petroleum pipeline companies when making repairs and rearranging lines. The TW-6 shows where to dig, as well as where NOT to dig, an important consideration when working near gas lines. To increase the instrument’s sensitivity, Fisher engineers removed all unnecessary metallic parts on the TW-6, replacing them with durable ABS molded plastic. Newly designed coil windings, completely upgraded electronics and nonmetallic parts have boosted the tracing distance of the TW-6 by 50-100 percent.
With the TW-6 longer tracing distances, which used to require expensive high-powered fault locator/tracers, can now be accomplished economically. In the Fisher tradition, the TW-6 is affordable, tough, and simple to use while providing maximum performance. A two year limited warranty comes standard with the unit.

Specifications:
Receiver:
Operating Frequency: 81.92 kHz + .005%
Batteries: 8 each AA (NEDA 15)
Weight: 3 lbs. (1.36 kg)
Sensitivity: Normal: 400 uV typical High: 8 uV typical
Signal-to-noise Ratio: 110 dB
Headset Impedance: 600 ohms (mono) 8 ohms (stereo)
Dimensions: 11 1/2” x 9” x 3” (29 x 23 x 7.6 cm)
Operating Temperature: -10°F to +120°, (-23°C to +48°C) depending on batteries used
Total Weight: 5.5 lbs. (2.5 kg) - (without handle accessory, ground plate assembly & op manual)
Total Shipping Weight: 6.75 lbs. (3 kg) - (including only ground plate assembly and operating manual)

Transmitter:
Operating Frequency: 81.92 kHz + .005%
Batteries: 8 each AA (NEDA 15)
Weight: 2.5 lbs. (1.1 kg)
Dimensions: 11 1/2” x 9” x 3” (29 x 23 x 7.6 cm)
Operating Temperature: -10°F to +120°, (-23°C to +48°C)
