MURPHY L120 Oil Level Swichgage
Rp. 12,500,000
NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

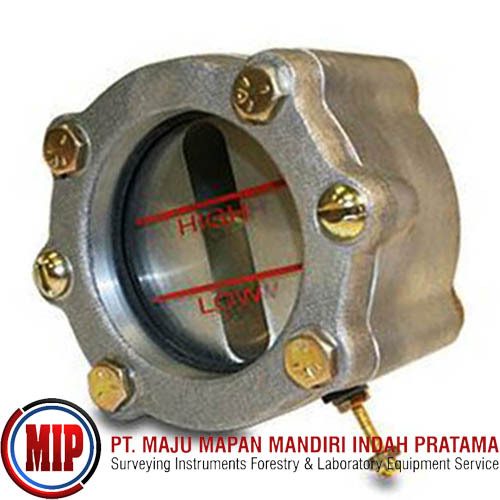

The L120 is a float actuated oil level Swichgage® instrument which combines an oil level sight gage and an adjustable, low and/or high limit switch. The unit is typically used for machined surface on crankcase such as Witte, National-Oilwell/Garland.
The limit switches are normally open during operation, yet close if the level drops or rises to where the float contacts the limit screw. The contact completes a circuit to ground a magneto or trip a Murphy magnetic switch. The magnetic switch can be used to activate alarms and/or shutdown.
The L120 has a cast aluminum housing and a brass float; Rating is: 2A @ 30 VAC/DC. The unit has mounting bolts: 1/4-20 UNC-2A
