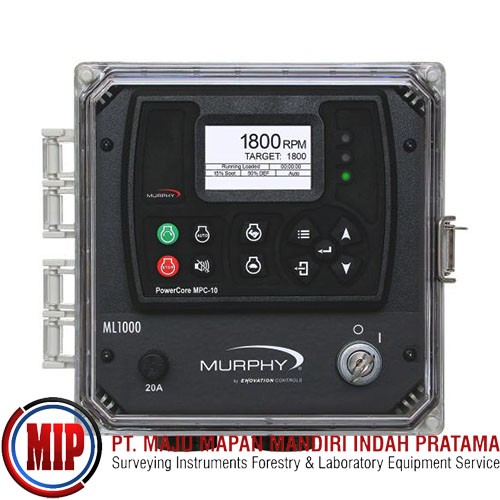

MURPHY ML1000 Control Panel Enclosure
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The MurphyLink Series ML1000-4X Panel, engineered and built by Enovation Controls’ Industrial Panel Division, is a superior panel offering which includes the powerful, yet simple-to-configure MPC-10 Controller. The MPC-10 is a general, all-purpose manual/auto start and manual/auto throttling engine controller designed with rental applications in mind. The controller is purposed primarily for applications where a wide array of inputs and outputs are not required. The MPC-10 supports J1939 CAN protocols for electronically governed engines as well as analog sensors on mechanical engines for fault and safety shutdowns.
The MPC-10 follows a standard operating sequence of 22 machine states that happen in a predetermined order. Machine states can be set to zero if not needed or adjusted to fit the application. The menu structure is incredibly versatile, with the ability to change many parameters and settings from the face without the need of a PC tool, if desired. The flexibility of the MPC-10 controller allows for the same control panel to be used across many applications. This provides the operator familiarity with the controller and control panel in any application.
The Control Panel utilizes industry-standard Deutsch connectors and is compatible for use on the simplest mechanical engine to the most advanced, fully electronic Tier 4 engines, when used with the correct Murphy Industrial Harness1 (MIH) or John Deere OEM engine harnessing.
A free-of-charge PC Configuration tool is available to allow customers to change default settings and provide three levels of passcode protection. The ML1000-4X panel can be mounted directly to the engine or engine/application cover. The enclosure has a clear door for protection from foreign debris contacting the face of the controller when desired.
FEATURES:
• Operates with 12VDC or 24VDC systems
• Large, Easy-To-Read 2.7-inch WQVGA Monochrome HR-TFT Display(400x240)
• Three Configurable Levels of Passcode Protection
• Standard Panel Designed for Modern Electronic Engines and Equipment Applications Using SAE J1939 Controller Area Network (CAN)
• Display Active Faults and ECU-Stored Faults with Text Description on Most Common Faults for Diagnosing Equipment Malfunctions
• Standard Harnesses Available for Most Major Engine Manufacturer ECUs
• Polycarbonate NEMA 4X Enclosure
• Tier 4/Stage IIIB/IV Ready
