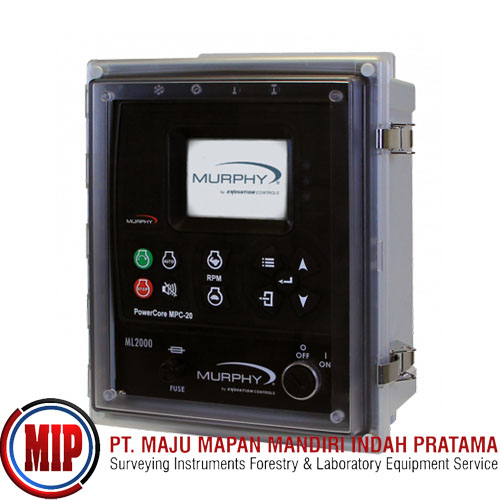

MURPHY ML2000 Control Panel Enclosure
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The MurphyLink® Series ML2000 Panel, engineered and built by Enovation Controls’ Industrial Panel Division, is a superior panel offering which includes the powerful, yet simple-to-configure MPC-20 Controller. This controller is part of the Murphy PowerCore family and was developed to meet the need of manual or automatic control whether it’s starting/stopping, throttling or both. This controller also has the flexibility to be used on either mechanically or electronically governed engines supporting SAE J1939 CAN communications.
The ML2000 panel offers software configuration from both the front user interface and the optional PC configuration tool. If the default parameters are not the desired setpoints, the packager or operator has the ability to change these settings with the PC configuration tool, then load with a USB thumb drive and USB programming harness (both sold separately). The configuration tool also allows for the splash screen to incorporate a company logo when powered on.
The flexibility of the MPC-20 controller allows for the same control panel to be used across many applications. This provides the operator familiarity with the controller and control panel in any application. The Control Panel utilizes industry standard Deutsch connectors and is compatible for use on the simplest mechanical engine to the most advanced, fully electronic Tier 4 engines, when used with the correct Murphy Industrial Harness (MIH) or John Deere OEM engine harnessing (Contact MurCal for application and MIH harnessing specifics).
FEATURES:
• Large 3.8-inch (97 mm) Monochrome, Transflective LCD Viewable in Direct Sunlight
• Standard Panel Designed for Modern Electronic Engines and Equipment Applications Using SAE J1939 Controller Area Network (CAN)
• Display Active Faults and ECU-Stored Faults with Text Description on Most Common Faults for Diagnosing Equipment Malfunctions
• Standard Harnesses Available for Most Major Engine Manufacturer ECUs
• Polycarbonate NEMA 4X Enclosure
