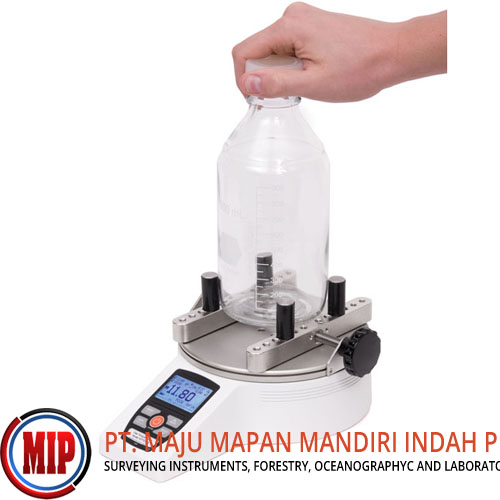

CHECKLINE CAP-TT01 Cap Torque Tester

Checkline CAP-TT01 Cap Torque Tester, 100 lbFin / 1600 ozFin / 116 kgFcm / 115 Ncm / 11.5 Nm. Series TT01 Cap Torque Testers are designed to measure application and removal torque of bottle caps up to 100 lbFin [11.5 Nm]. Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments. Class-leading accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration. The TT01 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First / second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures. Series TT01 testers include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data. Data stored in the TT01’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.

Part Number: MTT01
Range: 100 lbFin / 1600 ozFin / 116 kgFcm / 115 Ncm / 11.5 Nm
Moveable posts and optional jaws accommodate a wide range of sample shapes and sizes
Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
Password protection prevents unauthorized changes
High-speed 7,000 Hz sampling rate accurately captures peak torque values
5 selectable units of measure including Oz-in, Lb-in, Kg-cm, N-m and N-cm
USB, RS-232, Mitutoyo, and analog outputs
1,000-point data memory with statistics and outputs
Programmable set point indicators and outputs for pass/ fail determination
Configurable audio alarms and key tones
MESUR™ Lite data collection software included
Measures container diameters from 0.5" to 7.5" (12.7-190 mm)
Includes NIST Traceable Calibration Cert. A long form cert with data is optionally available.
First & second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures

Include:
(1) MTT01 - Cap Torque Tester With Data Output
(1) Sample gripping posts (4 - four)
(1) USB cable
(1) AC adapter
(1) Battery
(1) Resource CD
(1) Certificate of calibration without data
