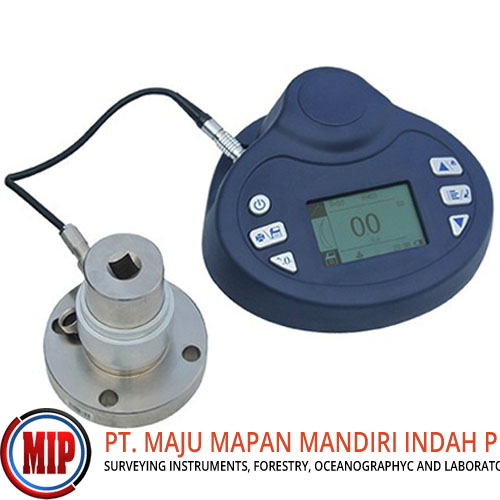

CHECKLINE TTC-E-200 Digital Torque Tool Tester w/ External Sensor

Checkline TTC [TTC-E-200] Digital Torque Tool Tester, External Sensor, 200 N-m (148 ft-lb) Capacity, 3/8" & 1/2" Tool Socket Size.The Checkline TTC Digital Torque Tool Tester Series provides exceptional accuracy for measuring torque on various products including torque wrenches, manual screwdrivers, electric screwdrivers, pneumatic screwdrivers and other torque controlled power tools. The Checkline TTC Digital Torque Tool Tester provide long operation life and power flexibility with the ability to work from the internal rechargeable battery or included AC adapter. The TTC's have six modes of operation: Track for live readings, Peak which records the highest level over a test, First Peak which records a reading after a programmed decrease, Auto Peak which resets after a period of time, Auto First Peak which resets the first peak after a period of time, Double Peak which provides two separate peak readings from programmed decreases.

Preset operation with programmable tolerance thresholds for quick pass fail tool test is available in all modes. The analog bar graph on the backlit, reversible LCD aids users by providing the resultant torque’s current position compared to the full scale range along with the direction of the force. Pass/fail icons produce live test feedback allowing instant determination of the results. Every tester comes standard with USB and RS-232 outputs. The TTC's software enables the uploading of data and the additional statistical analysis with its auto-calculation of the selected values. These excellent features make the TTC Torque Tool Testers a valuable and versatile addition to the production and quality control departments.

Part Number: TTC-E-200
Capacity: 17.7 lb-in / 2 N-m
Drive: 3/8" & 1/2" Tool Socket Size
Sensor: External
Solid lightweight aluminum housing
6 modes of operation: Track, Peak, First Peak, Auto Peak, Auto First Peak & Double Peak
0.3% accuracy and measuring ranges up to 800 N-m
Pass / Fail Testing with LED indication
Data storage for up to 1000 readings
USB and RS232 communication for data export
Runs on rechargeable batteries or using the AC adapter

Include:
1) TTC-E-200 - Digital Torque Tool Tester
(1) USB cable
(1) Charger adapter
(1) Calibration Certificate
(1) Printer cable
(1) Square driver adapter connector
