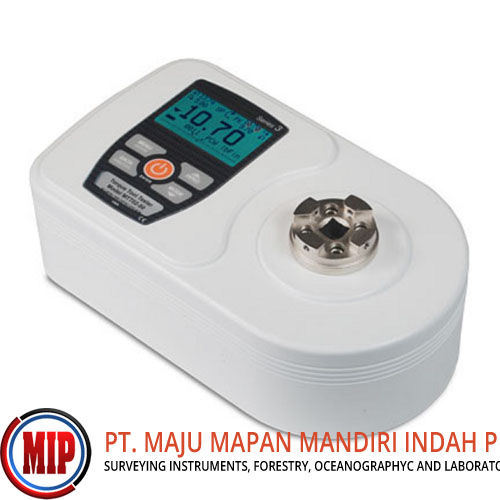

CHECKLINE TT02 Torque Tool Tester

Checkline TT02 [MTT02-100] Torque Tool Tester, 1600 ozFin / 100 lbFin / 4 lbFft / 1150 Ncm / 11.5 Nm Capacity. Series MTT02 Torque Tool Testers present a simple and accurate solution for testing manual and electric torque screwdrivers, wrenches, and other tools. These testers are compact and rugged, suitable for production environments. A universal 3/8” square receptacle accepts common bits and attachments. The TT02 captures peak torque in both measurement directions and also calculates 1st and 2nd peaks, useful for click-type tools. A blazingly fast sampling rate of 7,000 Hz and accuracy of ±0.3% produce reliable and consistent test results. The TT02 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output/zeroing/data storage upon tool slip or click, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration. Series TT02 testers include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data stored in the TT02’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation. Note: Not for use with impact tools.

Part Number: MTT02-100
Capacity: 1600 ozFin / 100 lbFin / 4 lbFft / 1150 Ncm / 11.5 Nm
Includes NIST Traceable Calibration Certificate
First / second peak capture for CW and CCW directions
High-speed 7,000 Hz sampling rate accurately captures peak torque values
USB, RS-232, Mitutoyo, and analog outputs
Programmable set point indicators and outputs for pass/ fail determination
3/8" square receptacle accommodates common bits and attachments
1,000-point data memory with statistics and outputs
Break detection: automatic output, data storage, and zeroing upon tool click/slip automates testing processes
Password protection prevents unauthorized changes
5 selectable units of measurement
Battery or AC operation

Include:
(1) MTT02-100 - Torque Tool Tester
(1) 1/4” hex to 3/8” square adapter
(1) USB cable
(1) AC adapter
(1) Battery
(1) Resource CD
(1) Certificate of calibration without data
