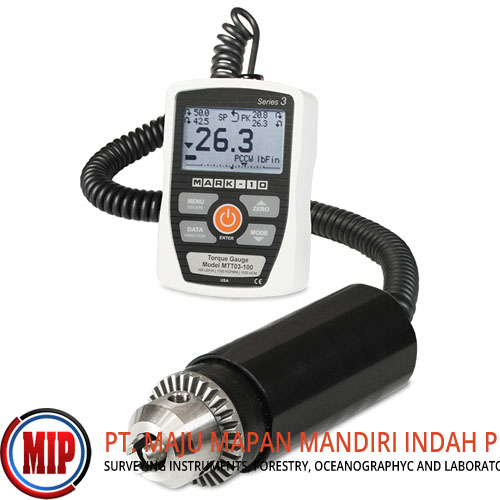

CHECKLINE TT03 Digital Torque Gauges

Checkline TT03 [MTT03-100] Digital Torque Gauges, 1600 Oz-in / 100 Lb-in / 1150 Kg-mm / 1150 N-cm Capacity. The new TT03 Series digital torque gauges are designed for clockwise and counter-clockwise torque testing applications in virtually every industry, with capacities from 10 ozF-in to 100 lbF-in (7 to 1,150 Ncm). A dedicated remote torque sensor with Jacobs chuck can be used to grip a sample, bit, or fixture. The gauge's rugged aluminum housing allows for hand-held use or test stand mounting for more sophisticated testing requirements. Series TT03 features a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges? features and configurable parameters. USB output is provided for data collection purposes. Setpoint indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of the applied force. The gauges include MESURTM Lite data acquisition software. MESURTM Lite tabulates single point data. One-click export to Excel allows for further data manipulation.

Part Number: MTT03-100
Capacity: 1600 Oz-in / 100 Lb-in / 1150 Kg-mm / 1150 N-cm
Peak memory for clockwise and counter clockwise readings saved and displayed
High-speed 2,000 Hz sampling rate
Single Reading USB data output
Programmable set points with pass/fail indicators
Battery or AC operation
Configurable audio alarms and key tones
Live load bar graphs with set point markers
CE mark
Includes NIST Traceable Calibration Cert. A long form cert with data is optionally available.

Include:
(1) MTT03-100 - Digital Torque Meter
(1) Chuck key
(1) Carrying case
(1) USB cable
(1) AC adapter
(1) Battery
(1) Resource CD
(1) Certificate of calibration without data
