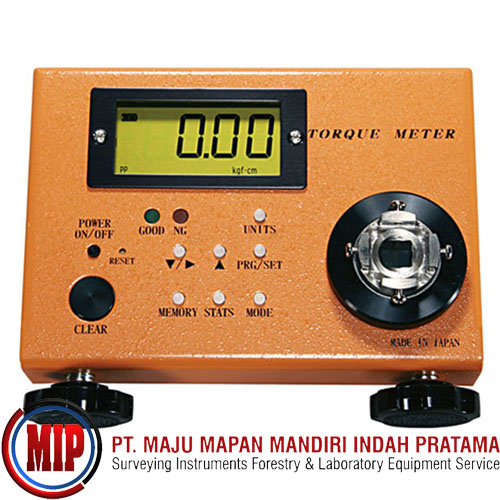

IMADA i-80 Torque Calibrator for Electric Drivers

The i-80 torque calibrator measures the peak torque non-impact electric/air drivers apply to a screw. Under tightened bolts and screws do not generate sufficient clamp force and can lead to loosening and assembly failure. Over tightening, past the yield point, permanently deforms the screw joint and can also lead to failure which is why proper tightening torque is so important. Manual torque wrenches can also be calibrated.

Standard Features
Wide measuring range up to 70 lbf-in
Selectable units lbf-in, Kgf-cm, N-cm and N-m
Programmable High/Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing
2 – driver adapters included: i-80 comes with smart adapters
Peak, Real Time and Peak Down measuring modes (selectable)
Measure both clockwise and counterclockwise
USB virtual COM port sends peak (1 data) or continuous data (12 or 180 data/second)
Statistics: number of data, Max, Min, Avg
Heavy-duty metal construction
Runs on internal NiMH batteries or AC adapter
3/8″ drive for socket wrenches

What’s Included
All series i torque testers are sold in kit form complete with tester, hard carrying case, 2 driver adapters and AC charger/adapter. All testers come with a 3-Point Certificate traceable to NIST. ISO Certificates are available at an additional charge.
