CHECKLINE CAP-TT01 Cap Torque Tester

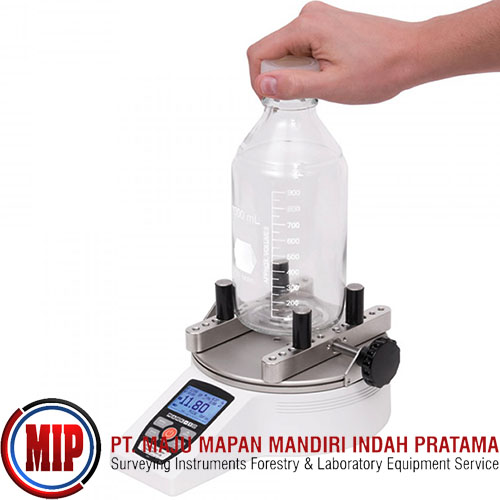

The CheckLine CAP-TT01 cap torque tester accurately measures application and removal torque of bottle caps up to 100 lb-in (11.5 Nm). The CAP-TT01 is supplied with adjustable pegs to effectively grip a wide range of container shapes and sizes, while optional flat and adjustable jaws are available to secure unique profiles. A rugged aluminum housing, and simple, operation allow for use in production, lab an field environments.

Accuracy of ±0.3% and a sampling rate of 7,000 Hz ensure reliable and consistent test results. The CAP-TT01 can display torque in Oz-in, Lb-in, Kg-cm, N-m and N-cm units.



The CAP-TT01 includes productivity-enhancing features, including USB, RS-232, analog outputs, automatic data output and zeroing, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration.

CAP-TT01 testers include MESUR Lite data acquisition software. MESUR Lite collects continuous or single point data. Data stored in the CAP-TT01's memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.



Features

Moveable posts and optional jaws accommodate a wide range of sample shapes and sizes

Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes

Password protection prevents unauthorized changes

High-speed 7,000 Hz sampling rate accurately captures peak torque values

5 selectable units of measure including Oz-in, Lb-in, Kg-cm, N-m and N-cm

USB, RS-232, Mitutoyo, and analog outputs

1,000-point data memory with statistics and outputs

Programmable set point indicators and outputs for pass/ fail determination

Configurable audio alarms and key tones

MESUR™ Lite data collection software included

Measures container diameters from 0.5" to 7.5" (12.7-190 mm)

Includes NIST Traceable Calibration Cert. A long form cert with data is optionally available.

First & second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures



Specifications

Accuracy ±0.3% of Full Scale

Sampling rate 7,000 Hz

Power AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.

Battery Life Backlight on: up to 7 hours of continuous use

Backlight off: up to 24 hours of continuous use

Measurement units oz-in, lb-in, kg-cm, N-m, N-cm

Outputs USB / RS-232: Configurable up to 115,200 baud.

Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.

Analog: ±1V DC, ±0.25% of full scale at capacity.

General

Configurable Settings Digital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration

Safe overload 150% of full scale (display shows "OVER" at 110% and above)

Included items Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide), and NIST-traceable certificate of calibration with data.

Warranty 3 years (see individual statement for further details)

Container Diameter 0.5" to 7.5" (12.7-190 mm)

Shipping Weight / Dims 8.4 lbs / 3.3 kg, 15" x 12" x 9" / 38 x 31 x 23cm
