CEDAR DIS-IP50 Digital Torque Tester

Rp. 60,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

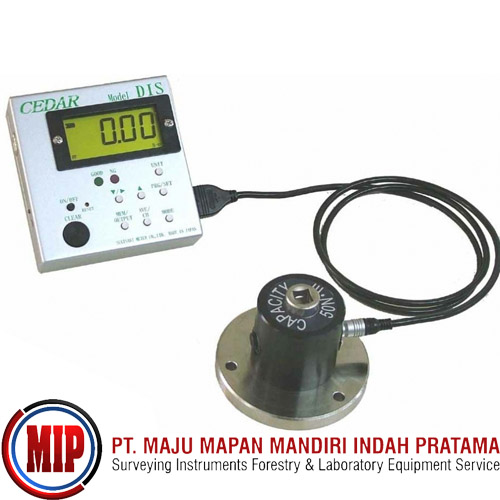

Digital Torque Tester with flanged remote sensor calibrates torque tools up to 362 lbf-ft. It has an accuracy of ± .5% F.S., ± 1 LSD. Select Peak, Real Time or Peak Down measurement modes. Programmable high/ low setpoints enable GO/ NO GO testing; green lights between high and low setpoints, and red for under low and over high setpoint.
Use the 800 internal memory for peak data recall or USB download for analysis by Imada data acquisition software SW-1SV-USB.
Calibrate your own torque wrenches and electric drivers and and save down time. Do not use with power drivers or impact tools ( Ask for DI-1M impact wrench torque tester) .

Model   Capacity   Drive
DIS-IP5   0.20 - 44.00 lbf-in
0.20 - 50.00 kgf-cm
2.0 - 500.0 N-cm
0.020 - 5 N-m   1/ 4 "

DIS-IP50 2.0 - 440.0 lbf-in
2.0 - 500.0 kgf-cm
20 - 5000 N-cm
0.20 - 50.00 N-m 3/ 8 "

DIS-IP200 20 - 1740 lbf-in
2.0 - 145 lbf-ft
0.20 - 20.00 kgf-cm
2.0 - 200.0 N-m 1/ 2 "

DIS-IP500 20 - 4400 lbf-in
2.0 - 362 lbf-ft
0.20 - 50.00 kgf-cm
2.0 - 500.0 N-m 3/ 4 "

What's In The Box:
(1) Display
(1) Sensor
(1) Sensor cable
(1) AC adapter/charger
(1) Carrying case.
(1) 3-point calibration certificate traceable
