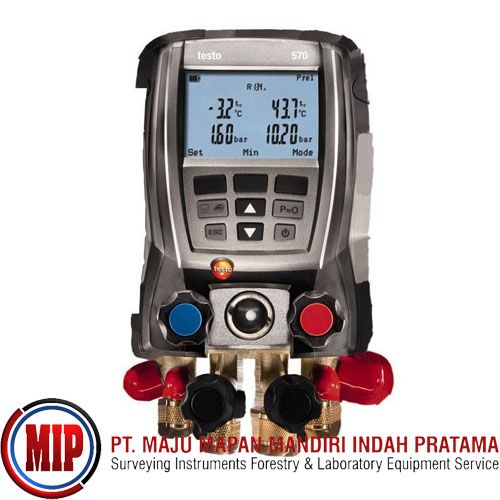

TESTO 570 (0563 5703) 4-Valve Digital Manifold Kit

The Testo 570 (0563 5703) Digital Manifold is a robust digital manifold with a 4-way valve block that's ideal for installing and troubleshooting all types of refrigeration, heat pumps and AC systems. Use it daily for calculating superheat and subcooling simultaneously, in real time, with two external temperature probes. During heat pump mode the 570 saves you time by automatically switching over the high and low side pressure and temperature without having to change the hoses.

For long term or multiple measuring cycles the 570 can be programmed and left to automatically collect and store data for up to 99 hours. This internal memory gives the technician the ability to accurately diagnose system errors that could easily have been missed in a manual process.

Use Testo's easyKool software, exclusive to Testo Digital Manifolds, for complete data management, providing onsite reports to customers and printing and displaying measuring results.

Features:
Records measurements for up to 999 hours
Internal memory stores up to 100 hours of recorded measurement values
Integrated vacuum sensor supports system evacuation
Consists of four-way valve block with four connections, four hose parkers, sight glass
Supplied with a 2-clamp temperature probe
Three temperature probe connections allow for simultaneous superheating and subcooling calculations
Performs temperature-compensated leak testing
Automatic compensates for surrounding pressure
Provides profiles for 40 common refrigerants
Automatic heat pump mode eliminates need to replace refrigerant hoses
Real-time data measurement and graphical editing with optional EasyKool software (available separately)
Illuminated LCD display
Rugged design and housing: IP42 protection class

What's In The Box:
(1) 4-Valve Digital Manifold with Data Storage (570)
(1) 2-Clamp Temperature Sensor
(1) Carrying Case
(1) USB Cable
(1) Calibration Certificate
(4) AA Batteries
