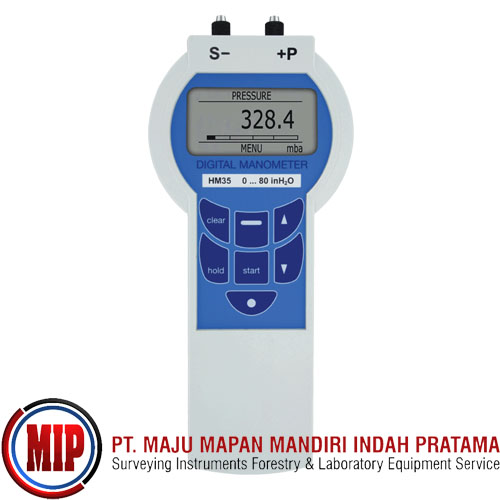

DWYER HM35 Series Precision Digital Pressure Manometer

The Dwyer HM3531GMG310 Handheld Digital Gauge Pressure Manometer, Range 0-7.25 psi, 0.2% Accuracy is designed to reliably measure and log pressure measurements for critical applications. This manometer can measure gauge pressure with 0.2% accuracy. The data logging function can store up to 10,742 readings and transmit the readings to a PC through an IR serial port. The large display can graphically display trends in the data as well as peaks and valleys. The HM3531GMG310 is ideal for laboratories, calibration facilities, and other critical pressure applications.

Features:
Range: 0-7.25 psi
Able to record up to 10,742 readings, which can be downloaded to a PC
Measure gauge pressure
Service: Air and compatible gases
Wetted Materials: 18/8 stainless steel
Accuracy: (Includes linearity, hysteresis, and repeatability) ±0.2% full-scale ±1 digit
Temperature Limits: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: Maximum 95% RH non-condensing
Display: Graphical back lit LCD. 128 x 64 points
Power Requirements:(3) 1.5 V AA alkaline batteries, installed functional, user replaceable
Can operate on 6 to 9 VDC external power
Current Consumption: 25 mA without back lit display, IR, or buzzer
Memory: 10,742 readings
Recording intervals adjustable from 1 second to 24 hours or manual
Case Protection: IP54 (NEMA 3)
Weight: 10.5 oz (300 g)
Process Connections: Hose 4/6 mm or 1/8" NPT
Agency Approvals: CE

What's In The Box:
(3) 9V alkaline batteries
(1) Instruction manual
