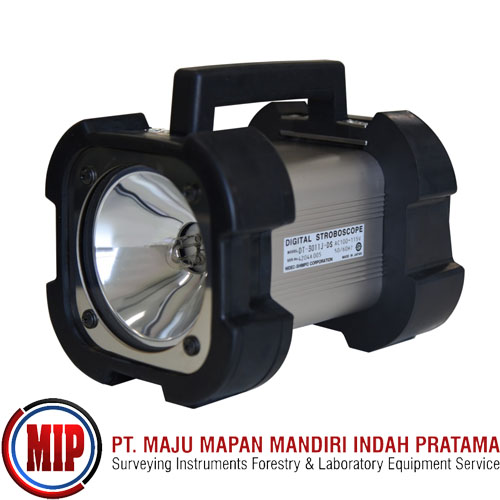

SHIMPO DT3011J Harsh Environment NEMA 4X (IP65) Stroboscope

Where powerful illumination and rugged speed measuring accuracy is required for the textile industry, the DT-311J will perform where other stroboscopes will not. The DT-311J is used to set injection timing, injection pressure, the timing of shedding and weft running time of weaving machinery. Units combine rugged NEMA 4X (IP65) housing with high-performance accuracy, special phase shifting, with shock-absorbing components and top-mounted handle, allows the equipment operator maximum flexibility when setting the timing of weaving machinery.



Features

LIMTED RANGE: 200-1,500 RPM/FPM

Accepts external trigger input and provides synchronizing pulse output

Water & Dustproof housing (IP65)

Phase shift for best view and flash photography

Hand-held or tripod operation

Easy-to-operate controls

Easy-to-read LED display

Specifications

Flash Range 200-1,500 FPM

Internal Signal Range 200 to 1,500 FPM

Phase Shift 0° – 359° / 1° increments

Accuracy ±1 digit

Flash Rate/Phase Angle Setter Rotary dial

Display 4 digit, 10mm high Red LED

Divide Ratio 1/1, 1/2, 1/3, 1/4, 2/4 with shift

Input Signal High level: 5-24 V pulse

Low Level: 0-1 V pulse. 2 msec minimum. Impedance less than 10k Ω

Input Impedance 47k

Display Mode Phase shift (degree), Tachometer

Flashtube Xenon lamp, max 10 W at 1,5000 rpm

Flashtube Life 1,200 hours at 1,500 rpm

Power Requirements 115 V or 230 V AC (specify), 50/60 Hz, 30 VA

Power Consumption 20VA max

Operating Temp 32 to 104 °F (0 to 40 °C)

Dimensions 149w x 174h x 214d mm

Weight 4.2 lb (1.9 Kg)

Warranty 2 years



Included Accessories 19.68’ (6m) input/power cable with connector, rubber strobe guard with handle
