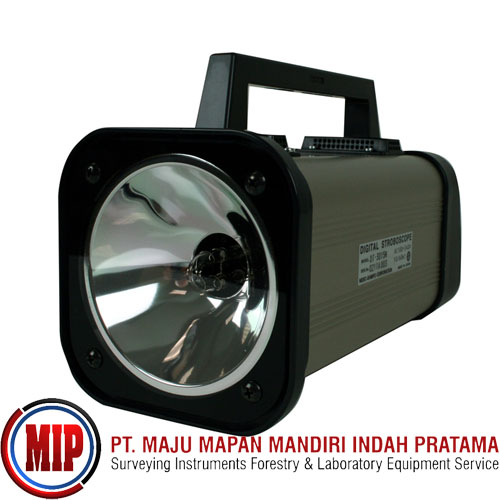

SHIMPO DT3015N Portable Digital Stroboscope
Rp. 38,500,000
NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
DT-3015N Heavy Duty, Portable Stroboscope with Rechargeable Battery. The DT-3015N heavy duty, battery powered stroboscope possesses the same great features of the DT-3011N with the added convenience of total portability via its own internal power supply. The quick recharge battery lasts up to three hours of full continuous usage with its high intensity flash rate. The DT-3015N provides power flexibility by utilizing either its rechargeable internal, batteries or AC line-power when plugged into the included AC adapter/charger unit. These features make the DT-3015N ideal for quality inspection and preventive maintenance of automated motion equipment.
Model DT-3015N
Flashing Range 40.0 - 35,000 fpm (flashes per minute)
Accuracy ±0.05 % of reading
Resolution 30.0 to 5000.0 : 0.1 fpm; 5001.0 to 8000.0 to 0.2 fpm; 8001.0 to 10000.0 : 0.5 fpm; 10001.0 to 35000.0 : 1.0 fpm
Lux Rating 8" (20 cm) Distance = 1950 lx @ 1500 fpm, 2000 lx @ 6000 fpm with 8" (203 mm) irradiation diameter.
20" (50 cm) Distance = 725 lx @ 1500 fpm, 850 lx @ 6000 fpm with 12" (305 mm) irradiation diameter.
Lamp Lifetime Typ.1200 hours at 1500 fpm
Display 6-digit, 7 segment red LED
Flash Duration 30 μsec
Phase Shift 0 to 359˚ set by 0.1˚ resolution; 0.00 to 999.99 msec set by 0.01 msec resolution, 1000.0 to 1994.4 msec set by 0.1 msec resolution
Power Requirement 100 to 240 VAC 50/60Hz
Battery NiMH battery- Approximate 2 hour time to full charge
Battery Life Approx. 3 hours (when the emission count is 1500 FPM)
Input Signal H level: 2.5 – 12 V; L level: 0 – 0.5 V Pulse width : 50 µs or more
Input impedance : 10 kΩ or more
Input Signal Range 27 to 35,020 fpm (1 fpm resolution) with available delay setting in degree or msec
Sensor Power Supply DC 12 VDC 40 mA
Temperature Limits 32 to 104°F (0 to 40°C)
Humidity Limits 35 to 85% RH (Non- condensing)
Product Weight 4.2 lbs (1.9 kg)
Package Weight 7.35 lbs (3.3 kg)
Approvals RoHS
Warranty 1-Year
Included Accessories Input Signal Connector, Charger Adapter with cable.
