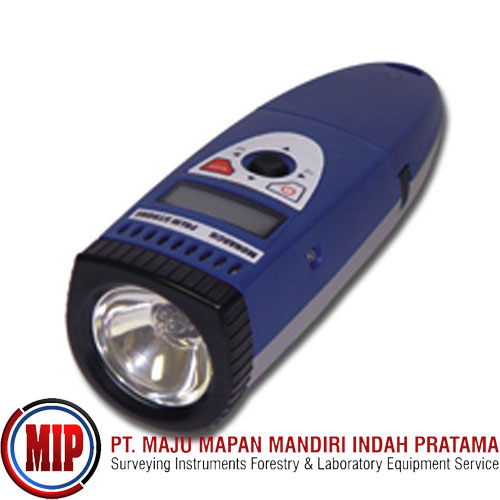

MONARCH PSX Palm Strobe X (6205-050) Portable Stroboscope
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The Monarch Palm Strobe X stroboscope is the new industrial standard for high intensity, multi-function compact Xenon stroboscopes. Featuring excellent brightness, exceptional features, and extra long battery life, the Monarch Instrument Palm Strobe X stroboscope has a unique one-touch joystick-type button that allows single hand operation for fast fractional RPM tuning.
The Palm Strobe X features modes for internal tuning, external TTL input, and tachometer display. Eight memory positions provide rapid recall of user defined frequencies. With internal tuning mode it has a flash range of 100 to 12,500 flashes per minute (FPM) with an accuracy of ±0.5 FPM (or ±0.01% of reading) and a resolution of ±0.1 FPM. Using external sensors it's flash range is 0 to 14,000 FPM with an accuracy of ±0.2 FPM. External input is 0-5VDC and TTL compatible. The tachometer mode to allows measurements from 5 to 250,000 RPM with an accuracy of ± 0.01% or 0.1 RPM.
This stroboscope can be used alone or with external sensors. When used in conjunction with the SPSR sensor interface module it is compatible with ROS-P, IRS-P, and MT-190P sensors. Sensors must have phone plug connections.
Features:
6 digit alphanumeric backlit LCD display
Light Power 7.9 watts @ 6000 FPM, 150 mJoules up to 3100 FPM
Flash duration: 10 - 30 µsec typical
Flash Range (internal): 100 - 12,500 FPM
Flash Range (external): 0 - 14,000 FPM
Flash Rate Accuracy Greater of ±0.01% of reading or ±0.5 FPM
External Input: 0 to 5 volt TTL compatible (+12V pk max) 20 µsec min pulse width
Tachometer range: 10 - 250,000 RPM
Tachometer accuracy: ± 0.01% or 0.1 RPM
Adjustment: Four Quadrant tuner button with blinking decade select for flash rate up and down,
multiply by 2 or divide by 2
Modes Internal, External, Tachometer, Preset, x or ÷2, Locked On
Meets RoHS standards
What's In The Box:
(1) 6205-050 PalmStrobe x
(1) NIST-Traceable Calibration Report
(1) Removable Battery Pack
(1) Universal 115/230 VAC Recharger
(1) NIST-Traceable Calibration Report
