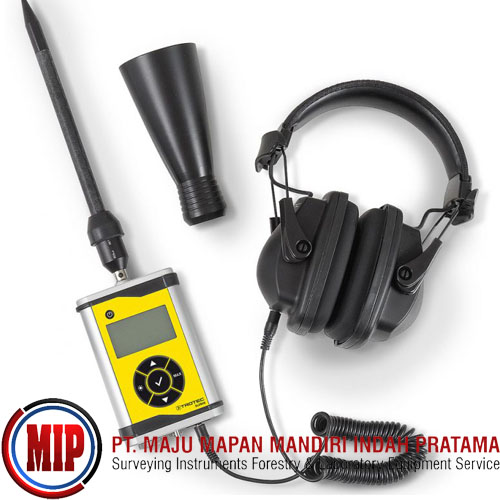

TROTEC SL300 Ultrasound Detector
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
When water or air flows out under pressure, a noise is generated which can be propagated as a body of sound in the conducting material and can be limited by listening. These sounds include auditory and ultrasound. Ultrasound is not audible for the human ear.
The SL3000 records ultrasonic signals and converts them into audible signals. At the same time, the level of the recorded sound is indicated on a display numerically and additionally in the form of an indicator beam.
The SL3000 is ideally suited for the preventive monitoring and / or localisation of faults and leakages on non-concealed pressure pipes and pipes fittings, mechanical bearings and electrical components.
By means of an optional ultrasonic transmitter, pressureless systems, it can also check for leaks and pressure-free systems, such as window frames or door frames.
Examples of applications:
Leak detection on compressed air ducts as well as steam, gas and vacuum systems
Wear control e.g. On ball, roller or needle bearings
Detection of electronic partial discharges on insulation damage
Functional control of condensate drains and valves
Leak testing of pressureless systems
Functionality:
Detection and conversion of ultrasound signals
Ultrasonic hearing
Readings of the sound level on the display
MAX-Function
Variable Contrast Setting (Display)
Auto-Power-Off-Function
Technical details:
Operating frequency: approx. 40 Hz
Display: Illuminated LC display
Connections: For various ultrasonic probes; Jack stereo
Power supply: 2 AA batteries or rechargeable batteries
Operating voltage: 2x 1.5 V battery or 2x min. 1.2V rechargeable battery
Operating time: approx. 24 hours during battery operation
Operating temperature: -10 °C to + 60 °C
Storage temperature: -20 °C to + 60 °C
Protection class: IP54
Protection class probe: IP20
Dimensions (without probe): L 130 x W 85 x H 30 mm
Weight: 300 g
Scope of delivery: SL3000, battery, extremely sound-proofed headphone, headphone cable, air sound probe, acoustic horn, directional tube, tip for directional tube, instruction manual, transport case
