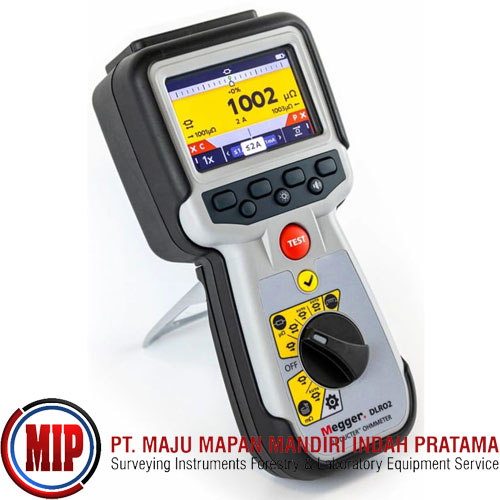

MEGGER DLRO2 Handheld Ducter Low Resistance Ohmmeter

The DLRO2 can measure low resistance values across a wide range of applications, from railways and aircraft to industry components. This tough device comes with a brand new ‘difference’ meter that allows repetitive measurements to be easily compared with an initial reference measurement. The difference meter also translates the percentage difference to a needle/pointer movement, making the changes clear to see.

If your applications require long test leads, then the DLRO2 can provide this without compromising test speed or safety. It has a dedicated long lead test to optimise the output, and this long test lead function is able to provide up to 1 A of test current into 4 ohms resistance. The DLRO2, with its optional cable reel test leads, is therefore ideal for testing wind turbine and avionic lightning protection applications.

Innovative Feature
The DLRO2 is also equipped with a new innovative feature called a "difference" meter. This allows repetitive measurements to be easily compared with an initial reference measurement. The difference meter translates percentage difference to a needle/pointer movement to make it visually easy to see change. New reference measurements can be set at the push of a button.

Key to Difference Meter screen:
Difference Meter scale
Previous result markers in red indicates noise was present
Reference measurement
Previous result markers
Electrical noise warning
Percentage difference between current measurement and initial reference measurement

In The Box
Kelvin clip lead set 2m CAT IV 300 V 10 A
Kelvin probe lead set 2m CAT IV 300 V 10 A
100-240 V, 50/60 Hz Charger power supply
Six Batteries: 1.2 V NiMH AA 2000mAHR
Hanging hook and strap
Soft pouch
USB memory stick (with user guide)
