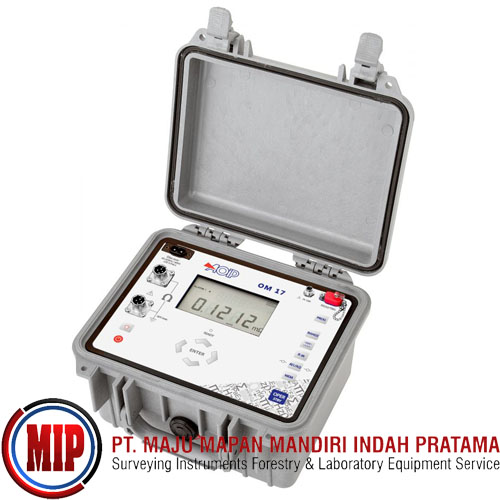

PALMER WAHL OM17 Field Micro-Ohmmeter

Rp. 225,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Designed for field use -in workshops or outdoors, OM 17 micro-ohmmeter is a portable instrument in an IP53 open / IP64 closed housing with lockable measurement plugs, whose performances are as high as a laboratory instruments’.

Replacing the OM16, the OM17 offers upgraded performances, in particular for inductive resistance measurements: Granted with a greater autonomy, OM 17 allows longer test campaigns to be performed at 10 A with continuous current (up to 60 min) and offers faster current loading of coil resistances (stabilization time < 2 s).

Easy to use, it carries out 4-wire measurements of inductive and non-inductive resistance with a continuous or pulse current up to 10 A. Offering a high precision of 0.05% and a 0.1 µΩ resolution, it has a different ranges selectable from 5 mΩ to 2.5 kΩ.

Features:
4-wire measurement of inductive and non-inductive resistance
Continuous or pulse current, from 1 mA to 10 A
Precision: 0.05% Reading
Automatic EMF compensation
Ambient temperature compensation (measured or programmed)
Compensation of metal temperature coefficient
Choice of reference temperature
2 programmable thresholds with visual and sound alarm
Memory: 1,000 measurements identified
Ideal for long tests at 10 A continuous over transformers

What's In The Box:
(1) Standard mains supply cable to recharge the battery
(1) Quick start manual
