MEGGER MOM600A Micro-Ohmmeter
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

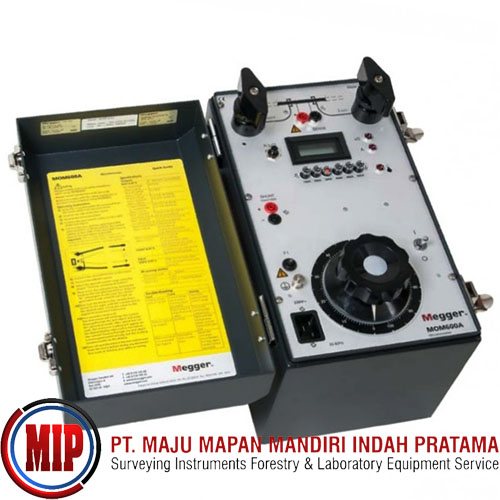

Megger MOM600A Micro-Ohmmeter Details
The Megger MOM600A is the more powerful version of the Megger MOM200A micro-ohmmeter.
Optimised for use in both extremely cold and hot conditions, the Megger MOM600A provides technicians with a complete solution for measuring contact resistance in high voltage breakers, disconnecting switches (isolators), knife-contact fuses, bus joints, line joints and anywhere else contact resistance needs to be tested.
The system outputs current of up to 600A and is supplied as standard with a complete set of flexible cables (including separate measurement cables) and a large-size, highly durable transportation case for protecting the equipment from harm.
Please note that this is the 230V mains voltage version of the MOM600A. An alternative version rated at 115V is also available (please call for more information).
Megger MOM600A Micro-Ohmmeter Key Features
Compact, rugged portable micro-ohmmeter
Check low resistance levels of HV circuit breakers, disconnecting switches and busbar joints
Output current from 0-600A DC
Resistance ranges from 0 to 1999μΩ
Simple, easy-to-use interface
Built inside its own carrying case
What's Included?
Megger MOM600A Micro-Ohmmeter (230V)
Cable Set (GA-05053)
Ground Cable (GA-00200)
Transport Case (GD-00010)
Optional Accessories
GA-07103: 10m Cable Set (Includes 2 x 10m (33ft), 70mm² Current Cables + 2 x 10m (33ft), 2.5mm² Sensing Cables
GA-09153: 15m Cable Set (Includes 2 x 15m (49ft), 95mm² Current Cables + 2 x 15m (49ft), 2.5mm² Sensing Cables
BD-90020: 600A/60mV Calibration Shunt
