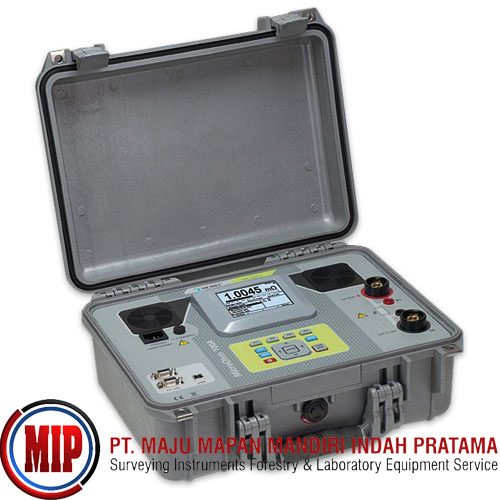

METREL MI3252 100A Micro-Ohmmeter

MI 3252 MicroOhm 100A is a portable low resistance ohmmeter used to measure low contact resistances of breakers and switches, busbars using test current from 100 mA to 100 A.

MEASURING FUNCTIONS
Resistance measurement: wide measuring range (1 nΩ ... 20 Ω)  adjustable test current (100 mA ... 100 A)
Voltage drop measurement
Bar graph: on screen resistance bar graph

KEY FEATURES:
Safe: sustain external voltages in case of wrong connection, protection level (CAT IV, 50 V); automatically detects continuity in current circuit.
Single and continuous measuring mode.
Portable: rugged carrying case with a handle and lightweight design  enable easy moving the instrument between sites.
High protection degree: IP 64.
Accurate: 1 nΩ best resolution with 0.25% accuracy.
Custom limits: the limits can be set for PASS or FAIL evaluation of test result.
Battery powered: the instrument enables measurements with 100 A for up to 10 minutes when powered from internal battery only.
Memory: built-in memory enables storage of up to 1000 test results.
Downloadable: downloads test results via RS232 or USB cable directly to the PC with the help of the software.

TECHNICAL DATA
Dimensions (w x h x l): 410 X 175 X 370 mm
Weight (with batteries, without accessories): 11.8 kg

MI 3252 Standard set
MI 3252
Instrument MI 3252 MicroOhm 100A
Current test lead with crocodile clip,  5 m, 25 mm2, 2 pcs
Potential test lead, 5 m, 2 pcs (red, black)
Test probe, 2 pcs (red, black)
Crocodile clip, 2 pcs (red, black)
Mains cable
RS232 cable
USB cable
Bag for accessories
PC SW HVLink PRO
Instruction manual
Calibration certificate
