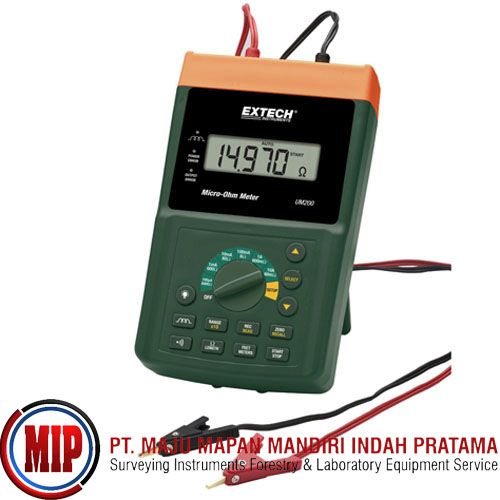

EXTECH UM200 Portable Micro-Ohmmeter
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
Extech UM200 High Resolution Micro-Ohm Meter Details
An extremely convenient, portable handheld meter, the UM200 can be easily taken to a measurement point and be used to calculate insulation resistance values across 6 measurement ranges (with 3 sub-ranges in each current range).
The UM200 provides measurements of resistive and inductive materials, is both auto and manual ranging and has high resolution up to 1μΩ. A built-in comparator can be used to carry out Hi/Lo resistance testing with 20 sets of prestored values for quick referencing.
This micro-ohm meter includes measurement ranges of 60mΩ, 600mΩ, 6Ω, 60Ω, 600Ω and 6kΩ with all results calculated with high degrees of accuracy. Test results are shown automatically on a built-in 5 digit LCD screen and it also possible to use the built-in memory of the UM200 to store up to 3000 measurements directly on the device for later recall.
This tester also features the ability to interface with PC, carries out cable length measurements in feet or metres and uses maximum test current of 10A.
Extech UM200 High Resolution Micro-Ohm Meter Key Features
6 ranges with 3 sub-ranges in each current range
Measurement of resistive and inductive materials
Auto or manual ranging
High resolution to 1μΩ
5 digit backlit LCD screen
Built-in comparator for Hi/Lo resistance testing
Store/recall up to 3000 measurements
10A maximum test current
Cable length measurements (feet or metres)
PC interface
Extech UM200 Technical Specifications
Specifications Range Resolution Current Accuracy (%rdg)
Resistance 60mΩ 1μΩ 10A ±(0.25% + 25μΩ)
600mΩ 10μΩ 1A ±(0.25% + 250μΩ)
6Ω 100μΩ 100mA ±(0.25% + 2.5mΩ)
60Ω 1mΩ 10mA ±(0.25% + 25mΩ)
600Ω 10mΩ 1mA ±(0.25% + 250mΩ)
6kΩ 100mΩ 100μA ±(0.75% + 3Ω)
Power Rechargeable Li-Polymer Battery
Dimensions/Weight 10.1 x 6.1 x 2.2" (257 x 155 x 57mm)/ 2.6lb (1160g)
Full List of Products Included
Extech UM200 High Resolution Micro-Ohm Meter
4-Wire Cables with Kelvin Clip Connectors
Rechargeable Li-Polymer Battery
AC Adapter/Charger
Software
USB Cable
Soft Carrying Case
