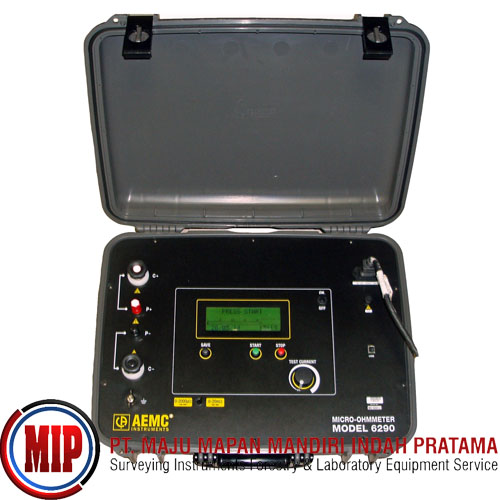

AEMC 6290 (2129.82) 20A Digital Micro-Ohmmeter

Features:
Accurately measures low contact resistances with test currents up to 200A
Measures resistances from 0 to 20mΩ
Low resolution of 0.1µΩ
Analog bargraph indicator with digital display
Stores up to 200 test results
USB interface
Direct printout using DataView software and a PC
Rugged, light-weight and water-resistant
Includes 20 ft long test cables with C-clamps

The AEMC high-current Micro-Ohmmeter Model 6290 is a portable, microprocessor-controlled instrument. It has optimized filters and protection for measurements in electrical substations. The Model 6290 can be used to accurately measure very low contact resistances of high voltage circuit breakers, switches, busbars, etc., with test currents up to 200A. It employs the four-terminal Kelvin method to prevent errors caused by test leads and their contact resistances

Measurement accuracy is guaranteed through a state-of-the-art signal amplification system, offset-free with high long-term stability. Resistance readings are shown in the alphanumeric display with up to 4½-digit resolution. It allows measurement resistances up to 20mΩ, and resolution of 0.1µΩ.

Applications
Test switchgear contact resistance
Test circuit breaker contact resistance
Test air frame bonding
Test rail bonding
Test pipeline bonding

DataView
Data Analysis and Reporting Software
Configure from your PC
Customize views, templates and reports to your exact needs
Create and store a library of configurations that can be used with the Model 6290 as needed
Display test results
Print reports using standard included templates or custom templates you design
Statistical presentation of measurements
Clean, easy-to-read report of test results
All set up functioning available from one screen
Easily documents statistics about user and  test site to be stored with the data

Includes:
Black 20 ft Kelvin test lead with integral C clamp
Red 20 ft Kelvin test lead with integral C clamp
Green ground lead and clamp
USB cable
Power cord
User manual
