SOFAMEL ELBT-PAT/CC For Low Voltage Overhead Lines

Rp. 78,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Sofamel ELBT-PAT/CC (For Low Voltage Overhead Lines)
The Sofamel ELBT-PAT/CC for low voltage overhead lines, secures electrical engineers against the hazardous potential of an unrequested voltage return during repair operations. Prioritising user safety, this earthing & short-circuit is certified according to the IEC 61230 standard and functional in a short circuit up to a maximum 4KA/1s.

Consistent contact with a bare conductor is assured by the ELBT-PATT/CC spring loaded clamps, for cylindrical conductors with a diameter between 3 and 18mm. Practicality is furthered by the inclusion of a TT-38A milling earthing lathe, an earthing rod and 3 copper cables with PVC insulation.

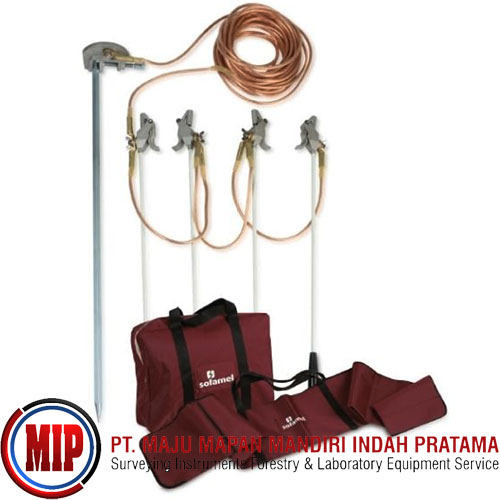

What's In The Box?
1 x ELBT-PAT/CC Short-Circuit Equipment
4 x PEBT spring clamps with 70cm poles
3 x Copper cables with PVC insulation of 16mm² section (0.6m long)
1 X Copper cable with PVC insulation of 16mm² section (15m long)
1 x TT-38A milling earthing lathe
1 x Earthing rod
2 x Nylon bags
