HDE DVM80UVK Universal Dual Stick Phasing Voltmeter Kit

Rp. 98,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The DVM-80UVM is a compact, high accuracy dual stick voltmeter and phasing set with capacitive test point mode and peak hold. The DVM-80UVM measures voltage from 5V up to 40kV and up to 80kV with a pair of optional add-on resistors. The two-stick design can be used in both overhead and underground applications.

The DVM-80UVM incorporates Phase Accurate Technology, which makes all voltage readings, whether made from line-to-line or line-to-ground, accurate and repeatable to within 1%.

Features:

Peak Hold mode

Triple auto ranging 3.5 digit display - reads in kilovolts from 5 Volts to 80kV

Highly accurate, within 1% of the reading

Backlit display for easy reading in bright or dark conditions

Measures AC and DC voltages

Use on secondary voltages, starting at 5 Volts

Measure voltage on elbow test points, meter will display the system voltage

Test underground cables for faults

Auto shut-off

Voltmeter weights 2.25 lbs

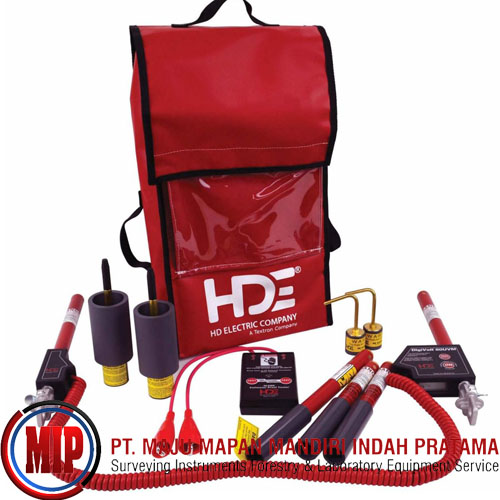

What's In The Box:

(1) DVM-80UVM

(2) 025-OLPS-5 (Overhead Brass Hook Probe)

(2) R-80 (Add-On Resistor for DVM-80 Series (Pair Required))

(2) ASP-15/25 (15kV and 25kV Class Insulated Underground Probe for Loadbreak Bushings)

(1) CFT-35 (Cable Fault Tester for Use up to 35kV System Voltages (21kV Phase-to-Ground))

(1) PT-5000B (Proof Tester Voltmeter Tester with 5000V Output for Other Digital/Analog Voltmeters)

(2) HSA-2500 and B-12 Carrying Bag
