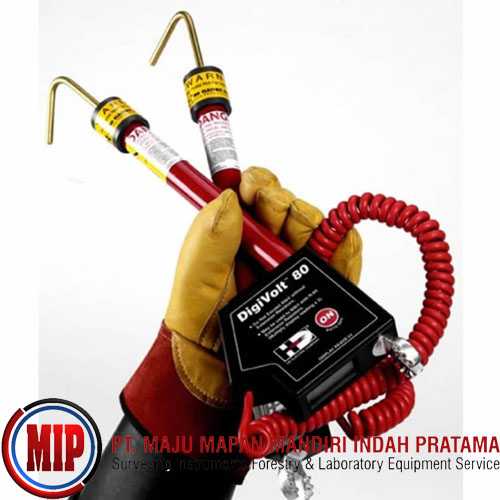

HDE DVM80T Dual Stick Phasing Voltmeter with Capacitive Test Point

Rp. 65,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The DigiVolt-80 products are compact, high accuracy digital voltmeter and phasing instruments designed to measure voltages up to 40kV and up to 80kV when used with a pair of add-on resistors. The two-stick design can be used in both overhead and underground applications. The digital meter displays the true RMS voltage on the conductor.

The DVM-80 unitsincorporate Phase Accurate Technology which makes all voltage readings, whether made from line-to-line or line-to-ground, accurate and repeatable to within 1%. The DVM-80 products are the only digital high voltage metersto include thistechnology for high accuracy voltage measurements.

The DigiVolt-80T includes an elbow test point mode, which is displayed by a blinking decimal point. Simply presstheON button to activate and de-activate thisfeature.

Applications:

Measure voltage and phase conductors on both overhead and underground systems

Verify a conductor is de-energized prior to grounding

Determine if multiple conductors are in-phase or out-of-phase

Test underground cable for faults (optional Cable Fault Tester and bushing probesrequired)

Discharge underground cables and other equipment that hold capacitive charges

Test point mode on DVM-80T allows measurements and phasing on elbow test points

Features:

Dual Stick Phasing Voltmeter with Capacitive Test Point Mode

Auto-ranging 3.5 digit LCD display

Backlit display for easy reading in bright or dark conditions

Compact, rugged and lightweight

Auto-shutoff to prevent extended battery drain

Low battery feature

Flush mount ON switch - prevents field damage

Measures up to 40kV (line-to-line or line-to ground) without add-on resistors, and up to

80kV (line-to-line or line-to-ground) with add-on resistors

Take measurements of elbow test points with the DVM-80T

Measures both AC and DC voltages

Built-in universal spline

What's In The Box:

(2) 025-OLPS-5 (Overhead Brass Hook Probe)

(1) CS-DVM (Plastic Carrying Case for DVM-25T, DVM-80 Series and DVM-5000V/K01 Kit) Case
