HDE DVM5000V Digital Low Voltage Phasing Voltmeter

Rp. 95,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

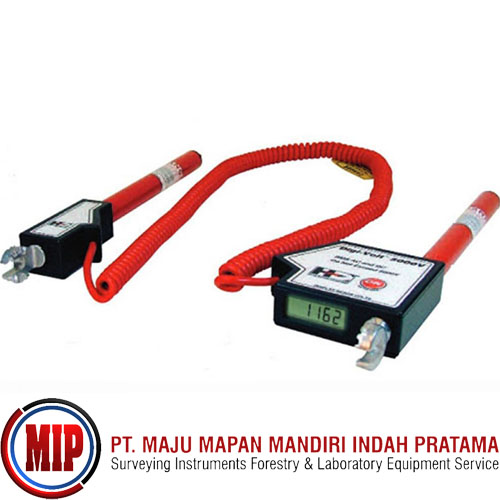

The DigiVolt-5000V is a compact digital voltmeter and phasing instrument designed to measure voltages from 10 Volts up to 5,000 Volts. The DVM-5000V can be used on secondary and primary voltage systems. The two-stick design allows accurate, low voltage measurements to be taken beyond the arc flash exposure distances required by NFPA 70E Standards, when used with the required applicable length hotsticks.

To comply with OSHA standards for testing the voltmeter on a known voltage source before and after each use - as stated in CFR 1910.133, Section (b) (2) (iv) (B) - the PT-500 Voltmeter ProofTesteris available (sold separately).

The DVM-5000V can be used in both overhead and underground applications. The digital meter displays 4-digits,showing the true RMS voltage on the conductor.No decimalpointsshowon the display, only the voltage reading. For example, while measuring 240 VAC the display will read “0240”, where 4kV will be displayed as “4000”. Fixed contact probes on the end of each stick allow for direct contact voltage measurements.

Applications:

Measure voltage on the secondary side oftransformers

Measure voltage in the primary side oftransformers up to 4800V system voltage

Measure voltage on metersockets

Measure voltage on meter boxes

Measure voltage on conductors on both overhead and underground systems

Verify a conductoris de-energized priorto grounding

Determine if multiple conductors are in or out-of-phase

Discharge underground cables and other equipment that hold capacitive charges

Features:

llows for proper clearance while taking secondary voltage measurements

High accuracy voltage measurements- within 1% of reading +/- 5 counts

Measures voltagesfrom 10Volts up to 5,000Volts

Displays voltage measured in volts, not kilovolts

Measures both AC and DC through 1000HZ AC RMS

Auto-ranging 4 digit LCD display

Backlit display for easy reading in bright or dark conditions

Built-in universalsplinesfor hotstick attachment (hotsticks are required)

Auto-shutoff

Low battery indication

What's In The Box:

(1)DVM-5000V

(2) UTH-8 (Universal Tool Handle Used with DVM-5000V/K01 Kit)

(1) PT-500 (Proof Tester Voltmeter Tester with 500V Output for DVM-5000V)

(1) CS-DVM (Plastic Carrying Case for DVM-25T, DVM-80 Series

(1) DVM-5000V/K01 Kit)
