METROHM E4550 11/33kV Analogue Phase Comparator

Rp. 75,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

A dual pole testing device, the E4550 can be used to make comparisons of phase between two energised conductors that are working at the same nominal voltage and frequency.
These phase comparators are available as both analogue meter and audible/visual indication models. This version - the E4550 - comes with an equipped analogue meter that can be used to give direct indication of phase conditions. It is suitable for use on both 11 and 33kV high voltage systems.

The E4550 can also be used both indoors and outdoors and is easily stored away thanks to removable handles.
We recommend purchasing a E4590 Proving Unit to accompany this device in order to check that testing accuracy is maintained both before and after a test.

Metrohm E4450 11/33kV Analogue Phase Comparator Key Features
Built-in analogue meter shows phase status
Doesn't require batteries
Clear red/green bands for out/in phase conditions
Dual measurements between two energised conductors
Signal driven
VDE-0681 Part 5 design

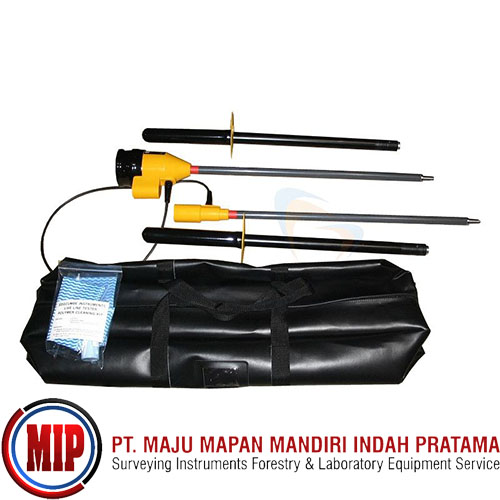

Full List of Products Included
Metrohm E4450 11/11kV Analogue Phase Comparator
2 Off Handles
Polymer Cleaning Kit
Instruction Manual
Carry Satchel
