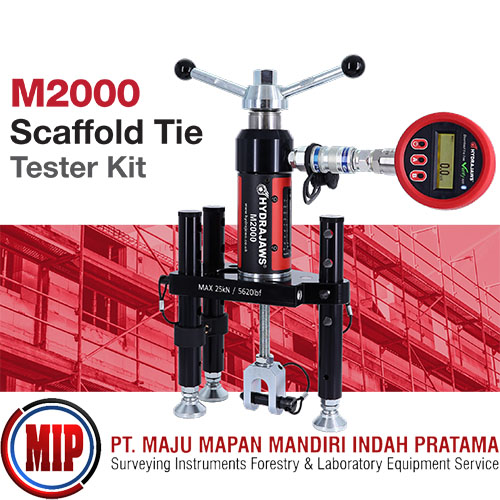

HYDRAJAW M2000 Scaffold Tie Tester Kit
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The Hydrajaws M2000 Scaffold Tie Tester Kit is a specific kit allowing Scaffolders to test all common scaffold anchors and fixings in general use today in line with NASC Guidance Notes TG4:19 and TG20:21. Manufactured to exacting high standards, the kit contains adaptors to test the most commonly used anchors used for scaffold ties up to a maximum tensile load of 25kN (5620lbf).
The three-legged load spreading bridge keeps reaction loads away from the fixing allowing results to be more consistent. Trusted by the best scaffolding companies in the world, the M2000 Scaffold Tie Tester Kit is an essential tool for any scaffolder wanting to comply with current health and safety practices.
Features
0-25kN Dual Scale rechargeable digital gauge compatible with the latest FREE Hydrajaws Verify PRO App (detachable for calibration, reduces carrier return costs).
2020 Load spreading bridge featuring height adjustable legs with pin arrangement in four positions with swivel feet giving 15mm of fine adjustment.
Turning Handle with 22mm (7/8″) integrated nut (for use in confined spaces)
Up to 50mm of stroke
The tester is preassembled and accessories can be quickly attached with ease
Hydrajaws gauge calibration certificate (valid for 12 months)
Supplied in a robust protective carry case with full operating instructions.
Kit includes the following adaptors:
M12 Ringbolt adaptor clevis
Bolt tester adaptor with M12 locking adaptor
M16 Threaded stud adaptor
M16 Hexagon Set Screw
M16 Threaded Stud
