PCE DFG 1000 X Force Gauge

Rp. 35,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

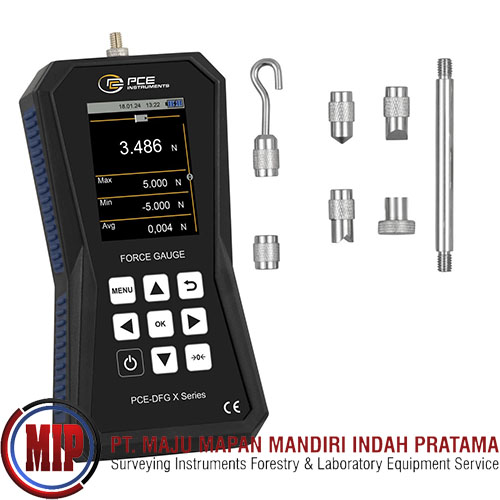

PCE DFG 1000 X Force Gauge
Force measuring device with internal measuring cell up to 1000 N / various alarm modes / graphic display / data logger / incl. software

The force measuring device can be used to record both tensile and compressive forces with high accuracy. Tensile and compressive forces are often measured in the test laboratory. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The force gauge has an internal measuring cell and can measure forces up to 1000 N. Various eyelets or hooks with an M6 thread can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell using these threads.

The internal memory of 32 GB offers space for 30 million measuring points. This allows measurement logs to be created, saved and exported. The force tester has a USB-C interface that can be used to read the measurement data into the PC software. The force tester is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. Various force test benches are available for adapting the force transducer.

Key Features:
- Measuring range: 0 ... 1000 N
- Measuring rate: 1 ... 7200 Hz
- Accuracy: ±0.05 % F.S.
- Graphic display
- USB-C interface
- PC software
- 32 GB memory for 30 mio. measuring points
- Measuring cells can be easily changed
- Various alarm modes
- Bar chart for displaying the measured value in the measuring range
- Calibration reminder
