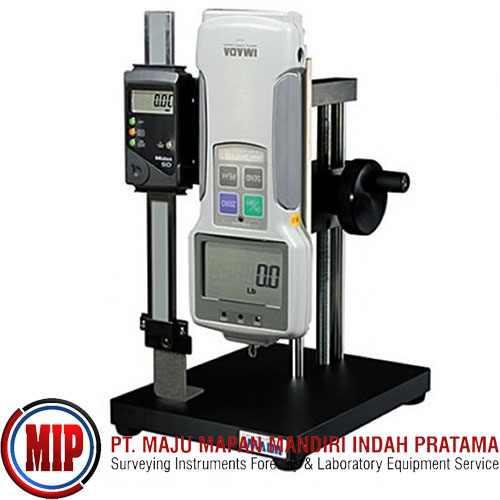

IMADA KV-11-S Hand Wheel Test Stand

Rp. 55,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The KV-11-S Micro-Movement Force Measurement Test Stand is designed for small deflection measurements such as membrane switches and other small micro switches. The compact size and light weight make the test stand portable, while the sturdy construction ensures accurate force and displacement measurement. The wheel operated design of the test stand allows users to make precise adjustments. When the wheel is released, the gauge stays in place. The standard model KV-11-S includes a highly accurate digital distance meter and accepts any Imada force gauge with a maximum capacity of 11 lbf (5 kgf). The digital distance meter has PC output capabilities.

Features:
For compression tests only
Reduced backlash and fine movement for highly precise measurements
Stroke 2.75″ (70mm)
Travel distance per knob rotation 1mm
Maximum Load 11 lbf (5 kgf)

What's In The Box:
(1) Imada KV-11-S [KV-11-S] Hand Wheel Test Stand
(1) Manual
