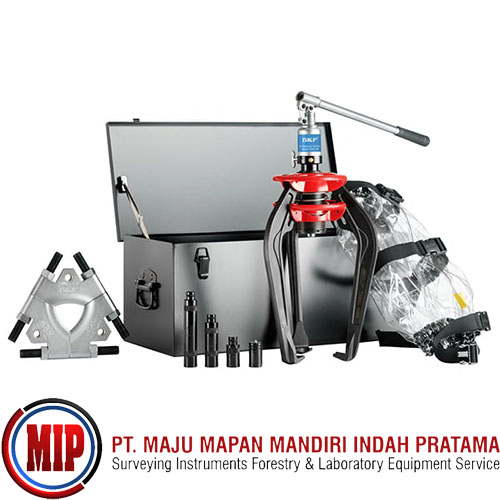

SKF TMMA100H/ SET Hydraulic Jaw Pullers Easy Pull

Equipped with spring-operated arms and a solid design, the patented SKF EasyPull is one of the most user-friendly and safe tools on the market. Ergonomically designed, the spring-operated arms enable the user to position the puller behind the component with just one movement.

Features:
Mechanical pullers TMMA series
• Sturdy design allows dismounting of components even in the tightest
application in a safe manner
• The unique red rings spring-operated opening mechanism allows the SKF EasyPull to be placed behind the component with one movement of the hands
• Self-locking arms help prevent the risk of puller slipping under load
• Double hexagonal heads allow easier application of withdrawal force
• Self-centring capability and nosepiece help avoid damage to shaft
• Efficient use of time due to quick dismounting
• Available in three sizes with a withdrawal force of 60, 80 or 120 kN (6.7, 9.0 or 13.5 US ton), enabling easy selection
• TMHS series hydraulic force generators are available as an accessory for the 80 and 120 kN versions

Hydraulic pullers TMMA ..H series
• Ready-to-use, integrated hydraulic cylinder, pump and puller – thus it is assembly-free and it is not necessary to purchase separate parts
• Safety valve prevents spindles and pullers from being overloaded if
excessive force is applied
• The spring-loaded centre point on the hydraulic spindle allows easy centring of the puller on the shaft without damaging the shaft
• The TMMA 100H has a maximum withdrawal force of 100 kN  and a long stroke of 80 mm , which facilitates most dismounting jobs in just one operation
• For dismounting jobs requiring less force, SKF offers a 75 kN
version, the hydraulic EasyPull TMMA 75H with a maximum stroke of 75 mm
• Supplied with extension pieces and one nosepiece
