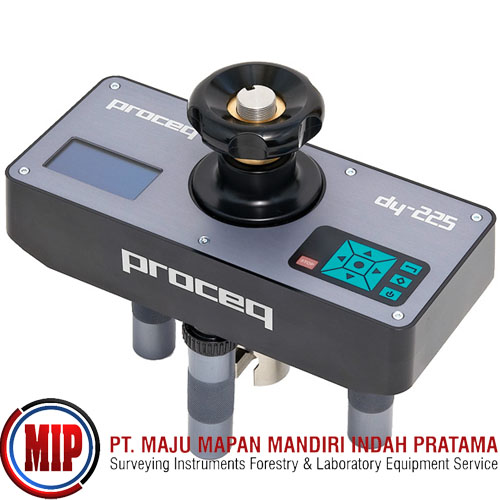

PROCEQ DY225 (346 30 000) Digital Pull Off Tester
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The Proceq DY-2 Family of automated pull-off testers covers the complete range of pull-off applications with unmatched ease of operation and the ability to store a complete record of the test.
Pull-off or adhesion testing is one of the most widely used test methods in the construction industry. This is reflected in the huge number of standards dedicated to the method covering applications such as adhesion of various concrete coatings to testing the tensile strength of concrete.
Major influences on the result of the pull-off test
It has long been known that one of the major influences on the result of a pull-off test is the operator influence in the application of a constant load rate. The DY-2 with its integrated feedback controlled motor removes this variable completely by providing a fully automated test at a constant load rate which can be verified.
Adhesion testing
The strength of the tensile shows the composition of the surface straight after measuring. Like this, concrete coating can be tested due to the tensile strength which also shows the concrete's casting.
The DY-2 is further unique in that it records every single test parameter required by the specification.
Time and date of the test
Test disc size
Maximum load applied
Automatic calculation of bond strength
Applied load rate with graphical record
Complete time of test
Failure mode
Product Variations
DY-206 has increased accuracy for low strength applications
such as testing adhesive strength of mortars and renders.
DY-216 covering most applications.
DY-225 for very high strength applications such as testing of fibre reinforced polymers bonded to concrete structures or testing the bond strength of repair and overlay materials.
Pull off tester Dyna Estrich is specially designed to measure the adhesive strength of floor coatings.
Working Range
Tensile Force Test Disc Ø 50mm
DY-206 0.6 - 6 kn 0.3 - 3.1 MPa
135 - 1349 Ibf 44 - 443 psi
DY-216 1.6 - 16 kn 0.81 - 8.1 MPa
360 - 3597 Ibf 118 - 1182 psi
DY-225 2.5 - 25 kN 1.3 - 12.7 MPa
562 - 5620 Ibf 185 - 1847 psi
