SAUERMANN DBM620C Air Flow Meter Kit

Rp. 135,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

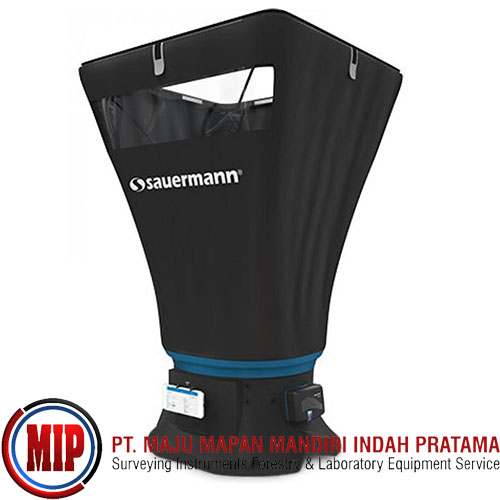

The Sauermann DBM 620 balometer has been designed for the measurement of air volume from ceiling diffusers and grilles. Supplied in the standard configuration with a 610 x 610 mm hood and collapsible space saving frame with built in flow straighteners, and a compact storage case. The DBM 620 measuring unit communicates with smartphone or tablet devices via Bluetooth using the free easy to use SmartKap mobile App available from Google Play or Apple App store for the display and reporting of measurement data.

Features
Measuring range 35 to 4250 m3h
Supplied with a Samsung Galaxy Tab A 10.1 preloaded with SmartKap mobile App - designed for remote data collection when the equipment is installed on the optional tripod assembly. For normal use the use of a personal smart phone is recommended.
Simultaneous display of 4 parameters. Selectable from airflow, air velocity, relative humidity, barometric pressure, temperature and differential pressure.
Selectable units of measure: Velocity - m/s, fpm, km/h, mph, Volume - m3/h, l/s, cfm, Pressure - Pa, mmH2O, mmHG, inWg, Atmospheric pressure, hPa and mbar.
HOLD function
ACR (Air Change Rate) function
Automatic averaging or point-by-point averaging
Removable measuring (pressure) unit for stand alone use as an autonomous micromanometer of with the measurement grid.
Optional hood sizes: 720 mm x 720 mm, 720 mm x 1320 mm, 420 mm x 1520 mm and 1020 mm x 1020 mm
Optional tripod with castors assembly for use with DBM620 and measurement grid.

Technical
Airflow range 35 to 4250 m3/h
Airflow accuracy ± 3 % of the measured value ± 35 m3/h
Airflow resolution 1 m3/h
Pressure range ± 0.2 % of reading ± 2 Pa
Pressure accuracy ± 2500 Pa
Pressure resolution 0.001 to 0.1 Pa
Atmospheric pressure range 700 to 1100 hPa
Atmospheric pressure accuracy ± 3 hPa
Atmospheric pressure resolution 1 hPa

In The Box
1 Standard DBM 620 kit
4 Additional hoods:
1 Hood of 2.36 x 2.36 ft (720 x 720 mm) with foldable frame and transport case
1 Hood of 2.36 x 4.33 ft (720 x 1320 mm) with foldable frame and transport case
1 Hood of 1.38 x 4.99 ft (420 x 1520 mm) with foldable frame and transport case
1 Hood of 3.35 x 3.35 ft (1020 x 1020 mm) with foldable frame and transport case
