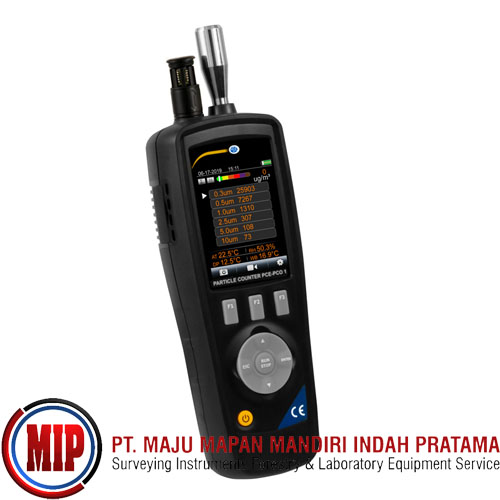

PCE PCO 1 Air Quality Particle Counter

PCE-PCO 1 is a laser particle counter, or dust measuring device, for measuring the concentration of particles in the air. The PCE-PCO 1 dust measuring device is ideal for monitoring clean rooms, indoor air quality, exposure to exhaust, tobacco or cigarette smoke and other harmful air pollutants, and levels of airborne dust. Cigarette smoke particles mainly are distributed in the size range from 0.1 to 1.0 micron.



A variety of materials are explosible in dust form. Some examples include: food (e.g., candy, sugar, spice, starch, flour and feed), grain, tobacco, plastics, wood, paper, pulp, rubber, pesticides, pharmaceuticals, dyes, coal and metals (e.g., aluminum, chromium, iron, magnesium and zinc). These materials are used in agriculture, chemical manufacturing, pharmaceutical production, furniture, textiles, fossil fuel power generation, recycling operations, metal working and processing (including additive manufacturing and 3D printing) and many other industries and processes.



In addition to being a combustion hazard, certain kinds of dust can be a health hazard. Exposure (such as skin contact, eye contact and inhalation) can be linked to sneezing, a stuffy or runny nose, itchy or red eyes, headaches, fatigue, fever, cough, shortness of breath, dermatitis, asthma, bronchitis, pneumonia (e.g., Legionnaires’ disease and hypersensitivity pneumonitis) and cancer.



- Measures 6 sizes of particles: 0.3 µm, 0.5 µm, 1.0 µm, 2.5 µm, 5.0 µm, 10 µm

- Offers a robust, 80 MB internal memory

- Features a large, full-color LCD display with backlight

- Includes a built-in camera for image and video recording

- Contains sensors for measuring air temperature, dew point and relative humidity

- Displays temperature measurements in degrees Celsius (°C) or degrees Fahrenheit (°F)



Specification:

General specifications

Environmental conditions 0 ... +50 °C / +32 ... +122 °F, 10 ... 90 % RH (non-condensing)

LCD display 2.8 " / 320 x 240 pixels, back-lit, color

Rechargeable battery Operating time ~ 4 hours

Dimensions 240 x 75 x 55 mm / 9.45 x 2.95 x 2.17"

Weight 420 g / 0.93 lb

Memory Internal: 80 MB

External: Micro SD card up to 8 GB (optional)

Particle counting specifications

Measurable particle sizes (channels) 0.3 µm / 0.5 µm / 1.0 µm / 2.5 µm / 5.0 µm / 10 µm

Flow rate 0.1 cfm (2.83 L/min)

Coincidence error <5% at 2,000,000 particles per cubic foot

Counting efficiency 50 % at particle size 0.3 µm

100 % at particle size> 0.45 µm (per ISO 21501)

Data storage 5000 records

Counting modes Cumulative, differential, concentration

Air temperature, dew point and relative humidity measuring specifications

Air temperature measuring range 0 ... +50 °C / +32 ... +122 °F

Air temperature accuracy ±0.5 °C with +10 ... +40 °C / +50 ... +104 °F

Otherwise ± 1 °C

Dew point measuring range 0 ... +50 °C / +32 ... +122 °F

Dew point accuracy ±0.5 °C with +10 ... +40 °C / +50 ... +104 °F

Otherwise ± 1 °C

Relative humidity measuring range 0 ... 100 % RH

Relative humidity accuracy ±3 % RH with 40 ... 60 % RH

±3.5 % RH with 20 ... 40 % and 60 ... 80 % RH

±5 % RH with 0 ... 20 % and 80 ... 100 % RH



Complette Package:

1 x PCE-PCO 1 particle counter

1 x zero filter

1 x rechargeable battery

1 x charger

1 x USB cable

1 x user manual

1 x CD-ROM (software)

1 x mini tripod

1 x hard case
