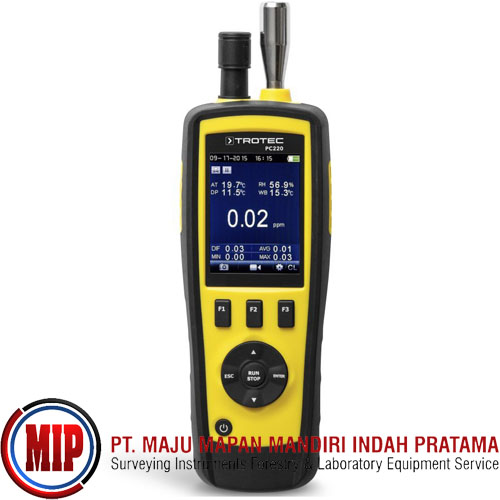

TROTEC PC220 Portable Laser Particle Counter

With the PC220 you have a versatile mobile environmental measuring device. It can be used to simultaneously detect not only the particle purity of the indoor air on six different size channels from 0.3 µm to 10 µm, but also gas concentrations of formaldehyde and carbon monoxide. It can further be deployed for determining climate data such as the air temperature, humidity, dew point temperature and wet-bulb temperature.

Moreover, due to the fact that the measuring device displays the particle masses directly as mass proportion in µg per m² of air, the PC220 is suitable for a quantitative determination of the concentration of airborne inhalable dust (PM10) and alveolar dust (PM2.5).
The standard equipment of this ISO-21501-4 compliant laser particle counter also includes an installed digital camera for documenting the measuring environment by means of photos and videos. The measurement data, date and time are also saved and indicated in both photos and videos to elucidate the measuring site.

The PC220 also comes with an integrated data logging function for non-stop measurements: up to 5,000 measurement records can be saved directly on the internal memory – which can be expanded additionally by up to 16 GB using a MicroSD card. After measuring, all detected data can be transmitted quickly and easily to a PC for the purpose of documentation or analysis via a USB interface.

Features:
Particle counter with durable laser diode
Conforms with ISO 21501-4
6 particle size channels from 0.3 to 10 μm
Detects size fractions and concentrations of air particles
Built in gas-detector for formaldehyde and carbon monoxide concertration
Direct conversion and indication of concentrations of E-dust and A-dust in the room air per cubic meter
Also measures environmental factors such as air temperature, humidity, dew and wet-bulb temperature
Data logger for 5,000 measurements on the internal memory (optional memory expansion of up to 16 GB with a MicroSD card)
Integrated digital camera for photo and video documentation of the measured environment
Additional colour indicator display with automatic acoustic alarm for quick detection of critical particle concentrations
2.8 inch colour LCD display with backlight for simultaneous display of all measured parameters
Ergonomic single-handed operation
Tripod mount for continuous measurement on a tripod
PC measurement data export via USB interface
Optional: calibration certificate

What's In The Box:
(1) Measuring device
(1) Mini tripod
(1) Transport case
(1) zero filter and connection hose
(1) Battery charger
(1) USB connection cable and software
(1) Operating manual
